Managed network switch RocketLinx ® ES8510-XT
10 portsgigabit Ethernetfiber optic

managed network switch
managed network switch
Add to favorites
Compare this product


Number of ports
10 ports
gigabit Ethernet, fiber optic
DIN rail
Other characteristics
redundant, SFP+, RJ45, multi-mode, single-mode, combo

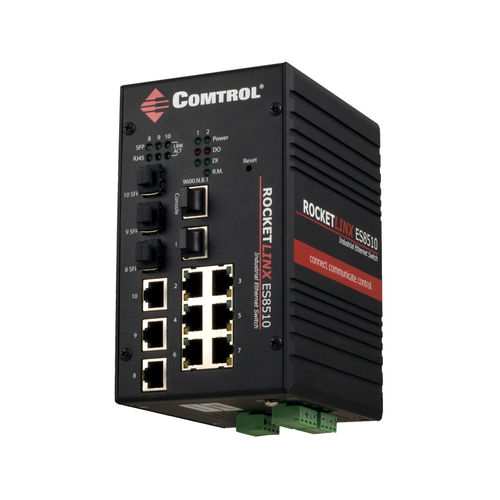

RocketLinx ® ES8510-XTManaged Industrial Ethernet switch, seven Fast Ethernet ports, and three Gigabit Ethernet combo ports, extended operating temperature range.Part Number: 32061-6 Seven 10/100BASE-TX ports and three Gigabit RJ45/SFP combo ports (10/100/1000BASE-TX, 100BASE-FX, 1000BASE-X) TACACS+ support NEMA TS2 certified Extended operating temperature range (-40⁰ - 74⁰) Multiple redundant ring (recovery time <5ms) 32Gbps non-blocking, 8K MAC address table VLAN, GVRP, QoS, IGMP snooping V1/V2/V3, rate control, port trunking, LACP, online multi-port mirroring Management via console CLI, Web, SNMP V1/V2c/V3, RMON, HTTPS, SSH, and PortVision DX Advanced security feature supports IP security, port security, DHCP server, IP and MAC binding, IEEE 802.1x network access control Event notification by email, SNMP trap, syslog, digital input, and relay output Extended operating temperature range (-40°C to 74°C), NEMA TS2 certified Rigid aluminum IP31 housing, excellent heat dispersion, redundant power, DIN rail/wall-mount installation IPv6 support The RocketLinx ES8510-XT is a managed Industrial Ethernet switch, equipped with seven 10/100BASE-TX ports and three 10/100/1000BASE-TX RJ45/100BASE-FX/Gigabit SX/LX/LHX/XD/ZX combo ports. Two Gigabit ports may be used to form a nonstop Redundant Ring while the third Gigabit port enables connection to an upper switch, couple ring, or public server. The Gigabit combo port design provides flexibility to choose copper or fiber media supporting 100BASE-FX or 1000BASE-X, Multi-Mode or Single-Mode for a wide variety of distance and installation requirements.
