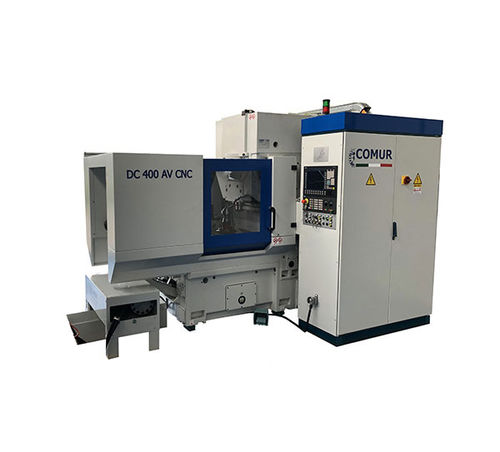

CNC gear-shaping machine DC 400

Product
Gear shaping machine COMUR DC 400

Main features

• Max. module: 6 mm
• Max. workpiece diameter (external gear): 400 mm
• Max. shaping width: 75 mm
• Spindle stroking speeds (hydro guide): 100÷1000 strokes/min

Technical data (table)
Max. module: mm 6
Max. workpiece diameter (external gear): mm 400
Max. shaping width: mm 75
Min./max. distance between cutter spindle C/L and worktable C/L: mm -35 / +295
Min./max. distance between cutter spindle face and worktable face (with standard riser block): mm 300 / 390
Spindle stroking speeds (hydro guide): strokes/min 100÷1000

Characteristics / Technical specifications

• Machine type: Gear shaping machine
• Model: COMUR DC 400
• Max. module: 6 mm
• Max. workpiece diameter (external gear): 400 mm
• Max. shaping width: 75 mm
• Distance between cutter spindle centerline and worktable centerline: -35 / +295 mm
• Distance between cutter spindle face and worktable face (with standard riser block): 300 / 390 mm
• Spindle stroking speeds (hydro guide): 100÷1000 strokes/min
• Machine dimensions (L×W×H): 2896 × 1558 × 2465 mm
• Machine weight: 6000 kg
