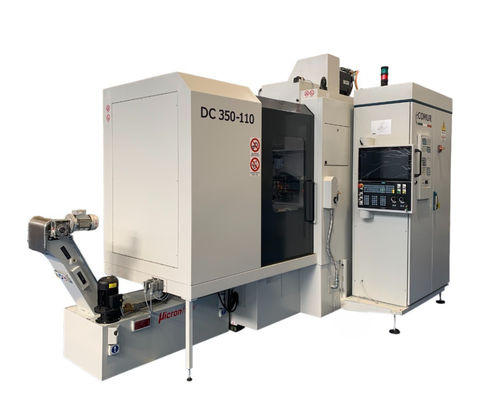

CNC gear-shaping machine DC 350

Product overview
The COMUR DC 350 gear shaping machine is designed to cut internal and external spur and helical gears of small to medium size. Its compact configuration and direct-drive motors enable high operating speeds, offering a balance between productivity and flexibility. The machine supports integration with anthropomorphic robots for autonomous operation and, with the optional CNC tilting table, can produce bevel gears for broader production needs in Automotive/Truck and aftermarket sectors.

Key features

• Suitable for internal and external spur and helical gears (small to medium dimensions)
• Max. module: 6 mm; max. external diameter: 350 mm; max. shaping width: 100 mm
• Streamlined design with direct-drive motors for high execution speeds
• Designed for integration with anthropomorphic robots for autonomous operation
• Optional CNC tilting table for bevel gear production

Technical data

• Max. module: 6 mm
• Max. workpiece diameter (external gear): 350 mm
• Max. shaping width: 100 mm
• Distance between cutter spindle C/L and worktable C/L: -70 / +238 mm
• Distance between cutter spindle nose and worktable face (with standard riser block): 311.5 / 386.5 mm
• Spindle stroking speeds (hydro guide): 100 ÷ 1000 strokes/min
• Worktable diameter: 365 mm; workpiece bore diameter: 150 mm
• Machine dimensions (L×W×H): 3890 × 3250 × 2650 mm (on anti-vibration mounts H = 70)
• Weight: approx. 5500 kg

Applications

• Production of automotive and truck gear components and aftermarket parts
• Medium-series production lines requiring high throughput and robot integration
• Diversified gear machining including bevel gears (with optional tilting table)
