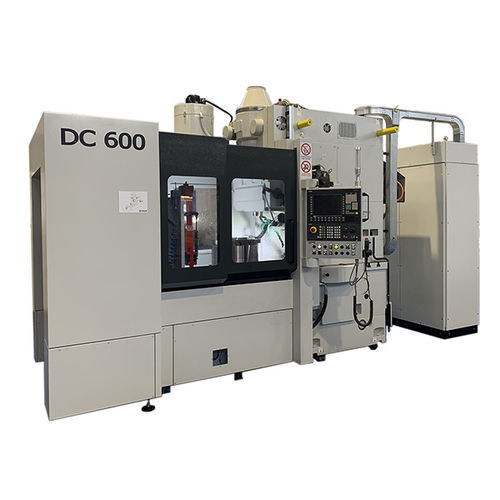

CNC gear-shaping machine DC 600

Product description
The COMUR DC 600 gear shaping machine is the solution for producing large internal and external straight spur gears, offering extended capacity and a robust structure. CNC-controlled automatic cutter positioning enables rapid setup and reduced cycle times by limiting the cutter stroke to the minimum required. The zero centre distance between the worktable axis and the cutter spindle axis allows processing of a wide range of workpiece diameters, from medium-large to small. The machine adapts to both diversified and dedicated production and supports robot automation for unmanned operation.

Key features

• Max. module: mm 10
• Max. workpiece diameter (external gear): mm 650
• Max. shaping width: mm 200
• CNC-controlled automatic cutter positioning for rapid setup and reduced cycle times
• Zero centre distance between worktable axis and cutter spindle axis (enables wide range of workpiece diameters)
• Adaptable to diversified and dedicated production; supports robot automation for unmanned operation

Technical data
Max. module: mm 10
Max. workpiece diameter (external gear): mm 650
Max. shaping width: mm 200
Min./max. distance between cutter spindle C/L and worktable C/L: mm 0 / 450
Min./max. distance between cutter spindle face and worktable face (with standard riser block): mm 385.5 / 635.5
Spindle stroking speeds (hydro guide): strokes/min 20 ÷ 450

Characteristics / technical specifications

• Max. module: mm 10
• Max. workpiece diameter (external gear): mm 650
• Max. shaping width: mm 200
• Min./max. distance between cutter spindle C/L and worktable C/L: mm 0 / 450
• Min./max. distance between cutter spindle face and worktable face (with standard riser block): mm 385.5 / 635.5
• Spindle stroking speeds (hydro guide): strokes/min 20 ÷ 450
