Overview

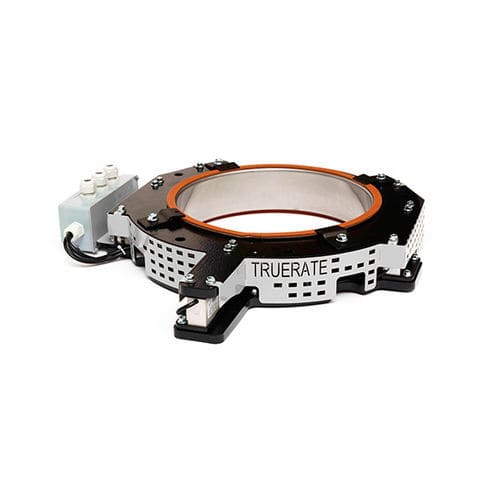

The TrueRate™ is a gravimetric load-rate sensor that applies gain-in-weight weighing technology to material conveying and loading. It measures and displays weight per load cycle and reports throughput in lbs/hr (kg/hr), enabling precise material dosing to hoppers, surge bins or storage containers.

• Calculate and display the weight for each load cycle
• Tabulate running throughput in lbs/hr (kg/hr)
• Display total usage by time period in lbs/hr (kg/hr)
• Convey or dose exact amounts of resin to destination bins

Features

• Load-cell gain-in-weight gravimetric accuracy within 1%
• Heavy-duty construction to protect sensor components
• Multiple load-cell platforms for mechanical stability (TrueRate 8 = two load cells; TrueRate 12 = three)
• Communication options for integration with external systems and equipment
• Alarms for resin or rate issues prior to blending, drying, or processing
• Compatible with Conair SmartServices™ and SQL reporting
• Accepts common supply loaders/receivers (24 VDC)
• Optional 4.3-inch touch screen for live data
• Optional pneumatic dosing valve for precise dosing and to prevent overfill/underfill

Frequently Asked Questions

• Weight & throughput rate accuracy to 1% – The TrueRate™ uses gravimetric sensing to deliver load-cycle and throughput accuracy within 1%, providing measured confidence compared with totalizer-only systems.
• Intuitive control with live data – Optional 4.3-inch touch screen provides immediate readings and reduces lag in data updates.
• Inventory and resin codes – Up to 500 resin/product codes can be stored with solid and bulk density values to maintain inventory totals per code.

Options

• Optional dosing valve – Pneumatically actuated valve to measure and dose specified amounts into a vessel below the TrueRate™, closing when target weight is reached to prevent overfill and reopening for the next batch.

Product Resources

• TrueRate™ Manual
• TrueRate™ Overview Video
• Full Equipment Catalog
• TrueRate™ spec sheet / full product resource

Technical specifications

• Gravimetric gain-in-weight accuracy: within 1%
• Measures and displays weight per load cycle
• Throughput reporting in lbs/hr and kg/hr with totalizer by time period
• Inventory tracking for up to 500 resin/product codes with solid and bulk density entries
• Optional 4.3-inch touch screen for live data display
• Optional pneumatic dosing valve for precise dosing and overfill/underfill prevention
• Multiple load-cell platform: TrueRate 8 = two load cells; TrueRate 12 = three load cells
• Compatible with common supply loaders/receivers (24 VDC)
• Communication options for system integration and SQL reporting
• Alarms for resin or rate issues (pre-processing alerts)
• Designed for installation on conveying/loading systems: hoppers, surge bins, material storage containers
