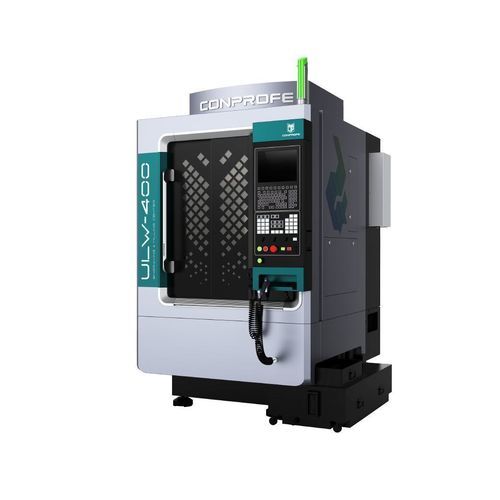

3-axis CNC milling center ULW-400

verticalfor glassfor ceramics

Overview

• Equipped with a self-developed Intelligent Ultrasonic Machining System to tackle the challenges in machining hard-to-cut materials
• Optional Supercritical Carbon Dioxide (ScCO2) Cryogenic Through-Spindle Cooling System and MQL Cooling System for clean machining
• High-speed (18,000-50,000rpm) ultrasonic electric spindle
• Two kinds of screw guide protection optional to meet machining needs of hard-brittle materials and metal materials
• Stable high-precision machining with positioning accuracy of 5μm and repeatability of 3μm
• Double-layer workbench design using cast iron and aluminum materials, providing rust resistance while ensuring worktable rigidity
• Expandable tool magazine

Product Highlights

• Gantry frame structure with exceptional stability and lightweight moving components, ensuring enhanced accuracy and improved dynamic performance of the machine tool
• Thermally symmetrical structure designed using finite element analysis (FEM) effectively minimizing thermal deformation impacts while ensuring the high rigidity required for sustained long-term precision
• Employing cast iron with excellent vibration-damping properties, which features outstanding dynamic cutting performance, stability, reliability, and strong applicability
• Continuous enhancement of bed structure rigidity through FEM to achieve the optimal design
• Unique Advantages of Ultrasonic Machining - High Frequency Ultrasonic Vibration Acted on Tooltip (15-70kHz): mitigates microcracking; reduces cutting force and improves machining efficiency; increases tool life; minimizes burring of the workpiece; enhances surface quality
• The machine tool adopts a SIEMENS CNC Controller with LMS Vibration Noise Testing System

Application Cases
Suitable for high-precision and high-efficiency machining of hard-brittle materials (ceramics, sapphire, glass, silicon carbide, etc.), carbon-fiber composites, superalloys (titanium alloy, etc.) and other hard-to-cut materials; suitable for small parts machining and micro-holes drilling.

Technical Parameters
Item: ULW-400A | B | C
X/Y/Z-Axis Travel: 400*400*150 mm
Worktable Dimension: 400*400 mm
Max. Load of Worktable: 100 kg
Ultrasonic Spindle: Standard
Spindle Diameter: ⌀80 | ⌀80 | ⌀100 mm
Max. Spindle Speed (Short-Duration): 40,000 | 50,000 | 40,000 rpm
Max. Spindle Speed (Long-Duration): 32,000 | 40,000 | 32,000 rpm
Rated Motor Power: 3.7 | 3.7 | 6 kW
X/Y/Z-Axis Rapid Speed: 15/15/15 m/min
X/Y/Z-Axis Max. Feed Speed: 10/10/10 m/min
X/Y/Z-Axis Positioning Accuracy: 0.005 mm
X/Y/Z-Axis Repeatability: 0.003 mm
Tool Magazine Type: Umbrella Type
Tool Holding Capacity: 12 | 13 | 11 (No. of Tools)
Total Weight (incl. Accessories): 2,100 kg
Machine Size (LxWxH): 1,245x1,750x2,130 mm
CNC Controller: SIEMENS 828D-280
Protection: Three-Layer Protection

Technical Specifications

• Model: ULW-400
• X/Y/Z travel: 400*400*150 mm
• Worktable dimension: 400*400 mm
• Max. worktable load: 100 kg
• Spindle diameter options: ⌀80 or ⌀100 mm
• Max spindle speed (short-duration): up to 50,000 rpm (model-dependent)
• Max spindle speed (long-duration): up to 40,000 rpm (model-dependent)
• Rated motor power: 3.7 kW or 6 kW (model-dependent)
• Rapid speed (X/Y/Z): 15 m/min; Max feed speed (X/Y/Z): 10 m/min
• Positioning accuracy: 0.005 mm; Repeatability: 0.003 mm
• Tool magazine type: umbrella; capacity 11–13 tools (model-dependent)
• Total weight (with accessories): 2,100 kg
• Machine footprint (LxWxH): 1,245 x 1,750 x 2,130 mm
• CNC controller: SIEMENS 828D-280
• Protection: three-layer protection
