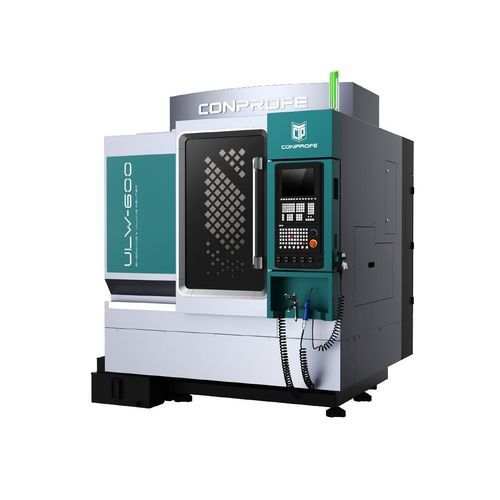

3-axis CNC milling center ULW-600

verticalfor glassfor ceramics

Product Overview

• Equipped with a self-developed Intelligent Ultrasonic Machining System to address machining challenges for hard-to-cut materials
• Optional Supercritical CO2 (ScCO2) cryogenic through-spindle cooling and MQL cooling systems for clean machining
• High-speed ultrasonic electric spindle (18,000–50,000 rpm)
• Optional screw guide protection types to accommodate hard-brittle and metal material machining
• High-precision positioning: 5 μm; repeatability: 3 μm
• Double-layer workbench using cast iron and aluminum for corrosion resistance and table rigidity
• Expandable umbrella-type tool magazine

Product Highlights
Gantry-frame structure provides high stability while moving components are lightweight to improve dynamic performance and machining accuracy.
Thermally symmetrical design validated by finite element analysis (FEM) minimizes thermal deformation to maintain long-term precision and rigidity.
Cast-iron components deliver superior vibration damping and dynamic cutting performance for reliable application across materials.
Bed rigidity optimized through iterative FEM improvements to ensure stable high-precision machining.

Ultrasonic Advantages
Integrated Intelligent Ultrasonic Machining System enhances processability of hard-to-cut materials.
High-speed ultrasonic electric spindle enables micro-machining and high-frequency modulation.
Stable high-precision machining with positioning accuracy of 5 μm and repeatability of 3 μm.
Optional ScCO2 cryogenic through-spindle and MQL systems support clean machining and improved surface integrity.
High-frequency ultrasonic vibration at the tool tip (15–70 kHz) delivers: 1) reduced microcracking; 2) lower cutting forces and higher efficiency; 3) extended tool life; 4) minimized burr formation; 5) improved surface finish.

Application Cases
Designed for high-precision, high-efficiency machining of hard-brittle materials (ceramics, sapphire, glass, silicon carbide), carbon-fiber composites, superalloys (e.g., titanium alloys) and other difficult-to-cut materials.
Well suited for small-part machining and micro-hole drilling in components requiring tight tolerances and excellent surface quality.

Technical Parameters
Item: ULW-600A | B | C | Unit
X/Y/Z-Axis Travel: 600×500×300 | mm
Worktable Dimension: 620×560 | mm
Max. Load of Worktable: 300 | kg
Ultrasonic Spindle: Standard | /
Spindle Diameter: ⌀100 | ⌀120 | ⌀150 | mm
Max. Spindle Speed (Short-Duration): 40,000 | 30,000 | 18,000/24,000 (A63 Optional) | rpm
Max. Spindle Speed (Long-Duration): 32,000 | 24,000 | 14,400/19,200 (A63 Optional) | rpm
Rated Motor Power: 6｜7.5｜Y:15 Δ:20｜20 (A63 Optional) | kW
X/Y/Z-Axis Rapid Speed: 15/15/15 | m/min
X/Y/Z-Axis Max. Feed Speed: 10/10/10 | m/min
X/Y/Z-Axis Positioning Accuracy: 0.005 | mm
X/Y/Z-Axis Repeatability: 0.003 | mm
Tool Magazine Type: Umbrella Type | /
Tool Holding Capacity: 15 | 13 | 9 | No. of Tools
Total Weight (incl. Accessories): 5,000 | kg
Machine Size (LxWxH): 1,850×2,100×2,395 | mm
CNC Controller: SIEMENS 828D-280 | /
Protection: Three-Layer Protection | /

Technical Specifications

• X/Y/Z-Axis Travel: 600×500×300 mm
• Worktable Dimension: 620×560 mm
• Max. Load of Worktable: 300 kg
• Ultrasonic Spindle: Standard
• Spindle Diameter Options: ⌀100 / ⌀120 / ⌀150 mm
• Max. Spindle Speed (Short-Duration): up to 40,000 / 30,000 / 18,000–24,000 rpm
• Max. Spindle Speed (Long-Duration): up to 32,000 / 24,000 / 14,400–19,200 rpm
• Rated Motor Power: 6 / 7.5 / Y:15 Δ:20 / 20 kW (A63 optional)
• X/Y/Z Rapid Speed: 15/15/15 m/min
• Max. Feed Speed: 10/10/10 m/min
• Positioning Accuracy: 0.005 mm
• Repeatability: 0.003 mm
• Tool Magazine: Umbrella type, capacity 15 / 13 / 9 tools
• Total Weight (with accessories): 5,000 kg
• Machine Size (L×W×H): 1,850×2,100×2,395 mm
• CNC Controller: SIEMENS 828D-280
• Protection: Three-layer protection
