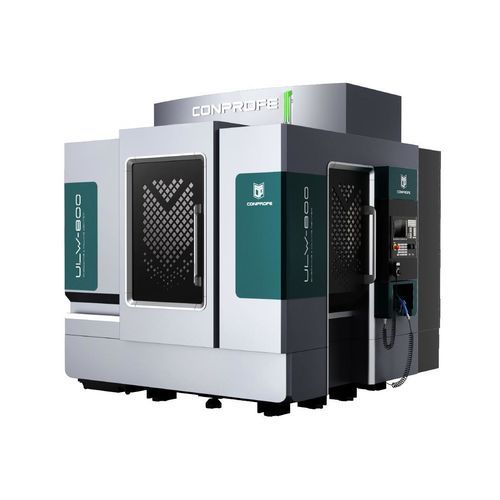

3-axis CNC milling center ULW-800

verticalfor glassfor ceramics

Product Overview

• Intelligent Ultrasonic Machining System for machining hard-to-cut and brittle materials
• Optional Supercritical CO2 cryogenic through-spindle cooling and MQL cooling for clean machining
• High-speed ultrasonic electric spindle (18,000–50,000 rpm depending on variant)
• Optional screw guide protections for hard-brittle and metallic materials
• Positioning accuracy 5 μm and repeatability 3 μm for high-precision machining
• Double-layer workbench combining cast iron and aluminum to balance rigidity and corrosion resistance
• Expandable tool magazine (disc or chain type)

Product Highlights
Gantry frame with high structural stability and lightweight moving parts to improve dynamic performance and machining accuracy.
Thermally symmetrical design based on FEM to minimize thermal deformation during long-term operation.
Cast-iron components for superior vibration damping and stable cutting performance.
Bed structure optimized by FEM to enhance rigidity.
Integrated ultrasonic machining capabilities to address machining of ceramics, glass, sapphire, silicon carbide and other hard-to-cut materials.
High-speed ultrasonic spindle available in multiple speed configurations.
Reliable positioning and repeatability for precision production.
Optional cryogenic and MQL cooling systems for contamination-free processing.

Unique Advantages of Ultrasonic Machining

• Ultrasonic vibration at the tool tip (15–70 kHz)
• Reduces microcracking
• Lowers cutting forces and improves process efficiency
• Extends tool life
• Minimizes burr formation
• Improves surface finish

Application Cases

• High-precision machining of hard-brittle materials (ceramics, sapphire, glass, silicon carbide)
• Machining of carbon-fiber composites and superalloys (e.g., titanium alloys)
• Small parts machining and micro-hole drilling

Technical Parameters

• Model: ULW-800A | B | C
• X/Y/Z travel: 800×800×350 mm
• Worktable dimension: 850×850 mm
• Max. worktable load: 1000 kg
• Spindle diameters: Ø100 | Ø120 | Ø150 mm
• Max. spindle speed (short-duration): 40,000 | 30,000 | 18,000/24,000 rpm (variant dependent)
• Max. spindle speed (long-duration): 32,000 | 24,000 | 14,400/19,200 rpm (variant dependent)
• Rated motor power: 6 kW | 7.5 kW | 15/20 kW (A63 optional)
• Rapid feed (X/Y/Z): 24/24/24 m/min
• Max. feed (X/Y/Z): 10/10/10 m/min
• Positioning accuracy: 0.005 mm (5 μm)
• Repeatability: 0.003 mm (3 μm)
• Tool magazine: Disc type or Chain type; capacity 20–24 tools
• Total weight (with accessories): approx. 9,000 kg
• Machine footprint (L×W×H): 2,990×2,935×2,875 mm
• CNC controller: SIEMENS 828D-280
• Protection: Three-layer protection
