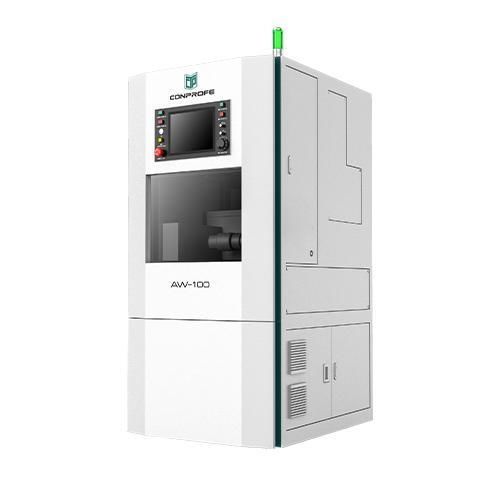

5-axis CNC machining center AW-100verticalfor glassfor ceramics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum alloys, for ceramics, for glass
- Number of tool stations
- 40 tools, 20 tools
- Applications
- for medical applications
- Other characteristics
- compact, high-precision, high-rigidity, with automatic tool changer
- X travel
340 mm
(13.39 in)- Y travel
150 mm
(5.91 in)- Z travel
120 mm
(4.72 in)- Rotational speed
28,000 rpm, 40,000 rpm
(175,929 rad.min-1, 251,327 rad.min-1)- Power
4 kW
(5.44 hp)- Work feed X-axis
12 m/min
- Work feed Y-axis
12 m/min
- Work feed Z-axis
12 m/min
- Table load capacity
5 kg
(11 lb)- Positioning accuracy
0.005 mm
(0.0002 in)- Repeatability
0.003 mm
(0.00012 in)
Description
Overview
Product Highlights
Application Cases
Technical Parameters
- Lightweight vertical 5-axis machining center designed for compact footprints
- Gray cast iron bed for rigidity and vibration damping
- Weight: 890 kg
- Compact design suitable for medical component machining lines
Product Highlights
- Horizontal carousel-type tool magazine with 20/40-tool capacity (optional 40T)
- Direct tool change on spindle for reduced tool change time
- Self-developed zero-backlash precision reducer for high positional accuracy
- Repeatability ≤ 8''
- IP67 protection rating on critical components
- Rapid coolant temperature reduction system for stable machining accuracy
Application Cases
- High-precision machining of hard-brittle and difficult-to-cut materials used in medical manufacturing
- Suitable for components such as aluminum alloy parts, glass-ceramic components, dental and orthopedic parts
- Ideal for small, high-value medical batches requiring tight tolerances
Technical Parameters
- Model: AW-100
- X/Y/Z-Axis Travel: 340 x 150 x 120 mm
- Worktable Dimension: Φ100 mm
- Max. Load of Worktable: 5 kg
- Spindle Diameter: Φ80 mm
- Max. Spindle Speed (Short-Duration): 40,000 rpm
- Max. Spindle Speed (Long-Duration): 28,000 rpm
- Motor Power: 4 kW
- X/Y/Z-Axis Rapid Speed: 12/12/12 m/min
- A/B-Axis Rapid Speed: 60/40 rpm
- X/Y/Z-Axis Positioning Accuracy: 0.005 mm
- X/Y/Z-Axis Repeatability: 0.003 mm
- A/B-Axis Positioning Accuracy: ≤40''
- A/B-Axis Repeatability: ≤8''
- Tool Magazine Type: Horizontal carousel type
- Tool Holding Capacity: 20/40 (optional)
- Protection Rating: IP67
