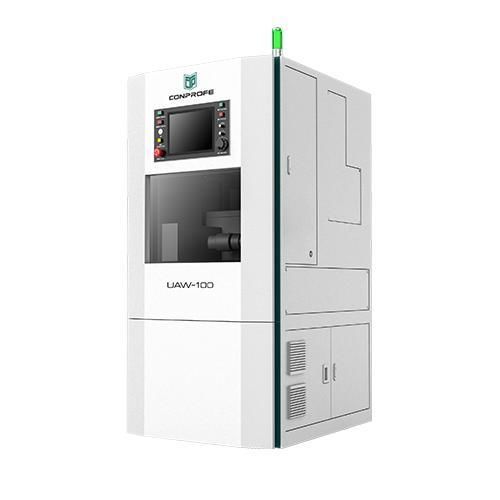

5-axis CNC machining center UAW-100

verticalfor glassfor ceramics

Summary

• Industrial-standard lightweight vertical 5-axis machining center optimized for precision component production
• Gray cast iron bed for rigidity and vibration damping
• High stability with compact footprint; machine weight: 890 kg
• Designed for precision machining of hard-brittle and difficult-to-cut materials

Product Highlights

• Horizontal carousel-type tool magazine
• HSK-E25 spindle interface
• Tool holding capacity: 10 or 18 (optional)
• Self-developed zero-backlash precision reducer
• Repeatability ≤ 8″
• IP67 protection rating
• Rapid cooling system for fast coolant temperature reduction
• Ensures stable machining accuracy in demanding production environments

Application Cases
Suitable for high-precision, high-efficiency machining of hard-brittle materials and difficult-to-cut metals in the medical manufacturing sector, such as aluminum alloy components, glass-ceramic parts and similar precision medical components.

Technical Parameters
Item — UAW-100 — Unit
X/Y/Z-Axis Travel — 340x150x120 — mm
Worktable Dimension — Φ100 — mm
Max. Load of Worktable — 5 — kg
Spindle Diameter — ⌀80 — mm
Max. Spindle Speed (Short-Duration) — 40,000 — rpm
Max. Spindle Speed (Long-Duration) — 28,000 — rpm
Motor Power — 3.7 — kW
X/Y/Z-Axis Rapid Speed — 12/12/12 — m/min
A/B-Axis Rapid Speed — 60/40 — rpm
X/Y/Z-Axis Positioning Accuracy — 0.005 — mm
X/Y/Z-Axis Repeatability — 0.003 — mm
A/B-Axis Positioning Accuracy — ≤40″ (arcsec)
A/B-Axis Repeatibility — ≤8″ (arcsec)
Tool Magazine Type — Horizontal Carousel Type — /
Tool Holding Capacity — 10/18 (Optional) — No. of Tools

Specifications

• Model: UAW-100
• X/Y/Z-Axis Travel: 340 x 150 x 120 mm
• Worktable Dimension: Φ100 mm
• Max. Load of Worktable: 5 kg
• Spindle Diameter: ⌀80 mm
• Max. Spindle Speed (Short-Duration): 40,000 rpm
• Max. Spindle Speed (Long-Duration): 28,000 rpm
• Motor Power: 3.7 kW
• X/Y/Z-Axis Rapid Speed: 12/12/12 m/min
• A/B-Axis Rapid Speed: 60/40 rpm
• X/Y/Z-Axis Positioning Accuracy: 0.005 mm
• X/Y/Z-Axis Repeatability: 0.003 mm
• A/B-Axis Positioning Accuracy: ≤40″ (arcsec)
• A/B-Axis Repeatability: ≤8″ (arcsec)
• Tool Magazine Type: Horizontal Carousel Type
• Tool Holding Capacity: 10 or 18 (optional)
• Weight: 890 kg
