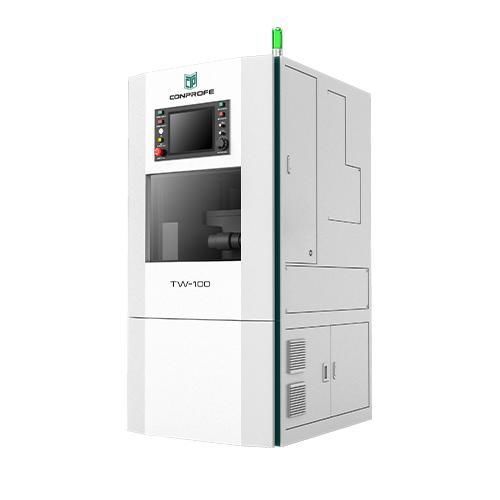

TW-100 Lightweight Vertical 5-Axis Machining Center

Overview

• Vertical 5-axis machining center designed for precision micro-machining in medical component production
• Gray cast iron bed
• High rigidity and vibration damping for stable machining accuracy
• Compact footprint for integration into medical production lines
• Mass: 890 kg

Product Highlights

• Horizontal carousel-type tool magazine for reduced tool-change times
• Direct tool change on spindle
• Tool holding capacity up to 40 tools (20/40 optional)
• Self-developed zero-backlash precision reducer
• Repeatability ≤ 8″
• IP67 protection rating for sensitive environments
• Rapid cooling system to stabilise machining temperature
• Fast coolant temperature reduction to maintain accuracy during long cycles

Application Cases
Suitable for high-precision, high-efficiency machining of hard-brittle materials and difficult-to-cut metals used in medical manufacturing, including aluminum alloys and glass-ceramic. Typical parts: orthopedic implants, dental components, micro-surgical instruments.

Specifications

• Item: TW-100
• X/Y/Z-Axis Travel: 340x150x120 mm
• Worktable Dimension: 140x150 mm
• Max. Load of Worktable: 5 kg
• Spindle Diameter: Φ80 mm
• Max. Spindle Speed (Short-Duration): 40,000 rpm
• Max. Spindle Speed (Long-Duration): 28,000 rpm
• Motor Power: 4 kW
• X/Y/Z-Axis Rapid Speed: 12/12/12 m/min
• A/B-Axis Rapid Speed: 60/40 rpm
• X/Y/Z-Axis Positioning Accuracy: 0.005 mm
• X/Y/Z-Axis Repeatability: 0.003 mm
• A/B-Axis Positioning Accuracy: ≤40″
• A/B-Axis Repeatability: ≤8″
• Tool Magazine Type: Horizontal Carousel Type
• Tool Holding Capacity: 20/40 (Optional)
