Low-speed gear-motor 12**...12*P... series
BLDCplanetarycoaxial

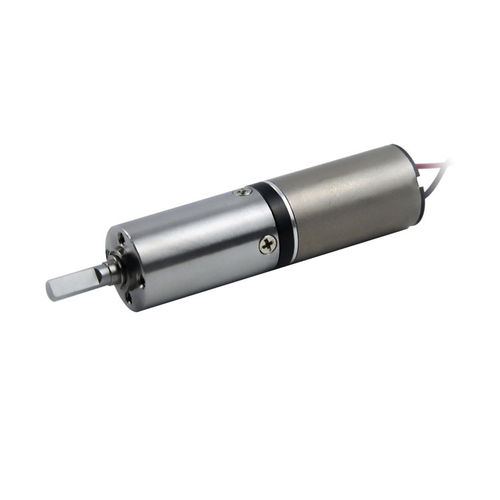

Low-speed gear-motor - 12**...12*P... series - Constar Motion Co., LTD - BLDC / planetary / coaxial
Low-speed gear-motor - 12**...12*P... series - Constar Motion Co., LTD - BLDC / planetary / coaxial
Low-speed gear-motor - 12**...12*P... series - Constar Motion Co., LTD - BLDC / planetary / coaxial - image - 2
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Motor type
BLDC
Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
0 W...10 W
Voltage
3 V, 5 V, 12 V
Torque
0 - 0.1 Nm
Product applications
industrial, for medical equipment
Other characteristics
low-speed
Gear ratio

Min.: 4 unit

Max.: 4,096 unit

Description

12**...12*P... 12mm Dc Planetary Gear Motor Low rpm Diameter：12mm Length ：33-53mm Voltage：3V、5V 、12V Gearbox：Metal planet gear、Metal injection Matched Motor Type：BLDC motor、Coreless motor Applications medical equipment, scientific instruments, industrial equipment, etc. Options Lead wires length、Shaft length、Special coils Unit Price Price upon request

Catalogs

No catalogs are available for this product.

See all of Constar Motion Co., LTD‘s catalogs
Go to the Constar Motion Co., LTD website for more information

Other Constar Motion Co., LTD products

Precision Gearmotor
