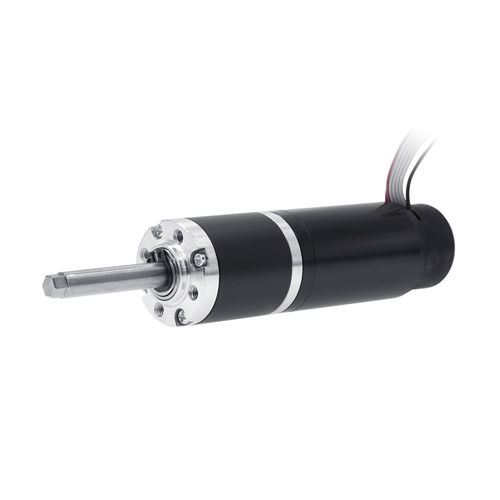

DC gear-motor 25**...25MP... seriesservomotorplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, servomotor
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W
- Voltage
- 24 V, 48 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
- Performance
- high-torque, high-precision
- Product applications
- industrial, for medical equipment, with encoder
- Certifications
- ISO 9001
- Other characteristics
- with encoder
- Gear ratio
Max.: 1,386 unit
Min.: 3.6 unit
Description
25**...25MP...
25mm 24V Dc Planetary Gear Motor
Diameter：25mm Length ： 61.5-86 mm Voltage：24V、48V Gearbox：Powder metallurgy
Matched Motor Type：BLDC motor、Coreless motor、Cored motor. Encoder:Available Manufacturer:China zhenzhen factory
Applications
medical equipment, scientific instruments, industrial equipment, etc.
Options
Lead wires length、Shaft length、Special coils
Unit Price
Price upon request
