Passive fire protection device KDS-RAIL

OverviewIn addition to the material fire behaviour rating (HL3), railway applications require a verified structural fire barrier at critical transitions, for example between the engine room and passenger compartment. The certified CONTA-CLIP KDS-RAIL fire protection kits for different frame sizes enable achieving fire resistance class E30 (30-minute compartmentalisation) according to DIN EN 45545-3. Each kit includes a precisely fitting intumescent (foaming) fire protection mat, special heat-resistant fixing screws and all installation materials required for assembly.

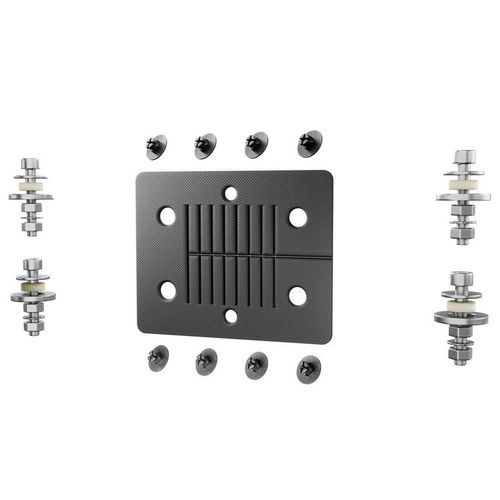

Kit contents

• Precisely fitting intumescent (foaming) fire protection mat
• Special heat-resistant fixing screws
• All necessary installation materials for kit assembly

Required components in accordance with EN 45545-3 (E30)The product is designed to provide E30 (30-minute compartmentalisation) fire resistance according to DIN EN 45545-3 when installed together with the required components and matching KDS frames/inlays.

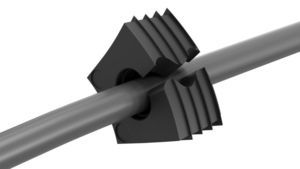

RAIL sealing elements (railway-approved material) for KDS cable entry systems

• Intelligent partitioning by corrugated cutting
• High sealing performance in combination with frame and inlay
• Integrated strain relief
• High packing density
• Available in two sizes

KDSI-SR: quick and secure assembly

• Complete assembly from the outside to the inside
• Assembled cables remain warranty-covered; retrofitting and service work are fast and simple
• High packing density

KDS-SR: simple inside assembly

• Easy assembly from the inside
• Warranty protection for assembled cables
• Retrofitting and service work can be performed quickly
• Cable strain relief included
• High packing density

Suitable products and accessories

• Actuating tool — KDS BW 1: assists fitting and removal of sealing elements from the frame
• Terminal blocks — processing and assembly of terminal blocks and housings according to specifications, including DIN‑rail mounting and labeling
• Housing technology — enclosures in polystyrene, polycarbonate, polyester, ABS and aluminium for protection of circuits and devices; customisations and assemblies available

Characteristics / technical specifications

• Brand: CONTA-CLIP
• Model/series: KDS-RAIL
• Applicable standard: DIN EN 45545-3
• Fire resistance class: E30 (30-minute compartmentalisation)
• Material fire behaviour rating: HL3
• Kit contents: intumescent fire protection mat, heat-resistant fixing screws, installation materials
• Purpose: create a structural fire barrier at critical transitions to prevent flame spread through wall openings
• Compatibility: kits available for different frame sizes
• Sealing element features: corrugated-cut partitioning, high sealing performance with frame and inlay, integrated strain relief, high packing density, two sizes available
• KDSI-SR features: outside-to-inside assembly, warranty-covered assembled cables, quick retrofitting/service, high packing density
• KDS-SR features: inside assembly, warranty protection for assembled cables, quick retrofitting/service, integrated cable strain relief, high packing density
