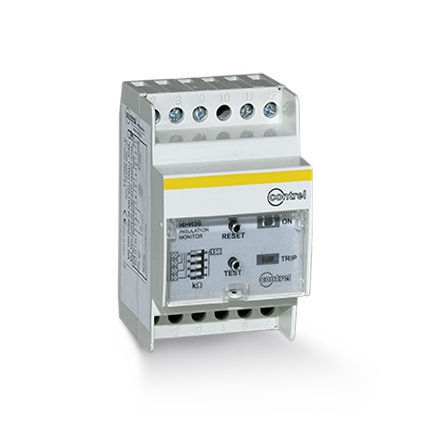

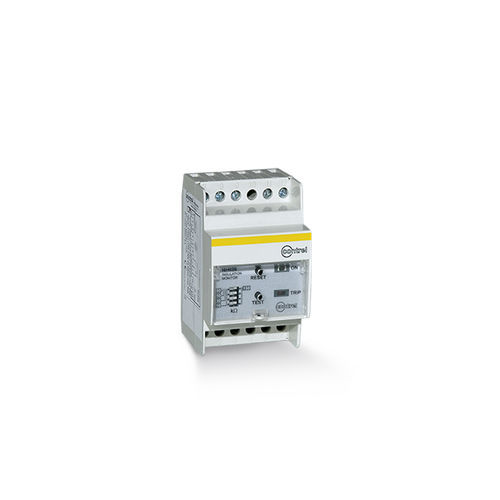

RS485 insulation monitor RI-R38

Insulation monitoring devices for fault detection network up to 440 VAC, RS485 available, reset auto or manual, trip relay standard or fail-safe Range - RI Product name - RI-R38 Product type - Insulation monitoring device Application - Production plant protection Motor protection Transformation lines protection Earthing system - IT Technical characteristics Network voltage - 440 VCA at 50...60 Hz 1000 VCA (optional with adapter) Auxiliary supply - 220...240 VAC 50/60Hz 110...125 VCA (optional) Power consumption - 3 VA Type of measurement - Network insulation resistance Intervention threshold - Alarm: 10...150 kOhm Intervention delay - < 5 s Measurement current - 0,1 mA (max) Measurement voltage - 12 VDC Internal impedance - 250 kOhm Test function - Local Output - 1 changeover (TRIP) 5 A (240 VAC) Local signalling - Green LED (power ON) Red LED (TRIP) Mounting mode - DIN rail 3 modules Standards - CEI-EN 61010-1 CEI-EN 61557-8 CEI-EN 61326-1 Weight - 200g
