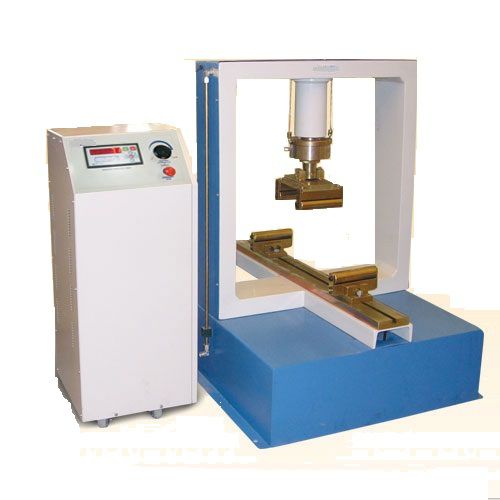

Bending testing machine TC-55xx series
automaticconcretemechanical

bending testing machine
bending testing machine
bending testing machine
bending testing machine
bending testing machine
bending testing machine
Add to favorites
Compare this product

Characteristics

Test type
bending
Operating mode
automatic
Test material
concrete
Technology
mechanical

Description

Flexural Testing Machines has a range of 100 kN and 200 kN capacity flexure testing machines have been designed to meet the need for reliable and consistent testing of flexural test on standard concrete beams, transverse test on kerbs and flagstones, indirect tensile tests on concrete and interlocking pavers. All machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameter have been introduced, it is sufficient to press the START button to complete the test. The key characteristics of the flexural test machines are: Automatic test cycle with standard Rapid Approach Graphical LCD Data Acquisition and Control System Menu Driven Software for easy operation Load vs time plot and instantaneous load rate displayed Accurate load rate control within ±5 from 1 kN/sec to 20 kN /sec Class 1 starting from % 10 of the full range Ready Stress Calculation for the standards of EN 12390-5 , EN 12390-6, EN 1338 ,EN 1340, ASTM C78, C293, C496 SI, Metric, Imperial Units Data storage up to 256 tests
