Permeability testing device TC-1080, TC-1090
automaticconcrete

permeability testing device
permeability testing device
Add to favorites
Compare this product

Characteristics

Test type
permeability
Operating mode
automatic
Test material
concrete

Description

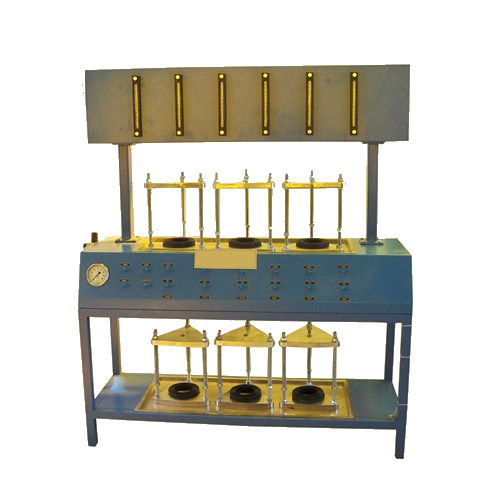

Concrete Impermeability Apparatus 6 Place Model is used for the determination of the depth of penetration of water in to hardened concrete specimens under pressure. Three and six specimen capacity models are available. The system can test 150x150x150 mm cube. Pressure to the sample, up to 12 bar with 0.2 bar precision is generated by compressed air applied to the integral water tank and controlled by a pressure regulator; with a pressure gauge. The penetration of water is measured through the burettes supplied complete with the system. The system comprises impermeability gaskets for every cell. The apparatus has to be fitted with the suitable air compressor.
