positive-displacement blower package / positive pressure

Add to MyDirectIndustry favorites
Compare this product
positive-displacement blower package / positive pressure positive-displacement blower package / positive pressure
{{requestButtons}}

Characteristics

  • Type:

    positive-displacement

  • Other characteristics:

    positive pressure

  • Pressure:

    15 psi

Description

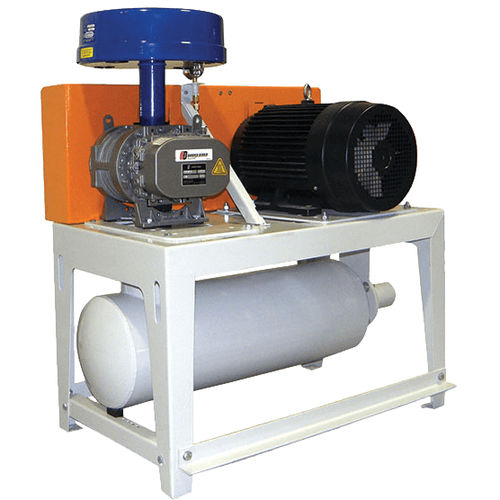

Positive displacement pressure blower packages for continuous pressure conveying systems

The Positive Displacement Pressure Blower is part of Coperion K-Tron’s wide range of quality blower packages for conveying pellets, powders and granular materials. With blowers for 51 mm (2 in) through 254 mm (10 in) conveying systems up to 1 bar (15 PSIG) pressure, our system engineers can select a 2.2 to 187 kW (3 to 250 HP) blower that is specifically tailored to respond efficiently for your application.

Standard Features

Positive displacement blower IEC or NEMA motor mount frame Heavy-duty blower base Totally enclosed drive guard Easy-to-read liquid filled pressure gauge Inlet filter/silencer Chamber-absorptive type discharge silencer Vibration mounting pads Check valve Mechanical relief valve IP65 (NEMA 4, 4X) adjustable pressure switch OSHA and CE compliant
