Fume filter B-flat

particulatedustpocket

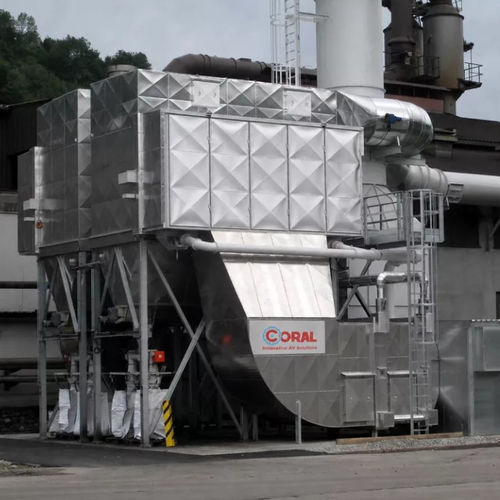

The horizontal flat-bag filter is an advanced solution for industrial dust collection in complex processes where high filtration efficiency, continuous operation, and low operating costsare required. Designed to handle dust generated by high-temperature processes, this system combines a horizontal configuration, intelligent automatic cleaning, and a modular design, offering a reliable, easy-to-maintain system that is also suitable for installations with limited headroom. Ideal for high-temperature processes The horizontal flat-bag filter is suitable for a wide range of applications involving high concentrations of dust and hot fumes, with a maximum operating temperature of up to 240 °C. It is used, for example, in sectors such as: foundries combustion plants glassworks cement plants asphalt mixing plants aluminum remelting plants other industrial processes involving fine or hazardous dust Depending on the type of dust and process conditions, you can select the most suitable filter media to ensure high dust removal efficiency and help meet applicable emission requirements. high dust removal efficiency low pressure drop, resulting in reduced fan energy consumption Automatic cleaning only when necessary, based on pressure drop less stress on the filter media, resulting in a longer service life for the filter element compact design with a small footprint Easy access to the cleanroom for maintenance and filter replacement It can also be installed in rooms with low ceilings Modular configuration, customizable based on flow rate and process Flow rates up to 500,000 m³/h
