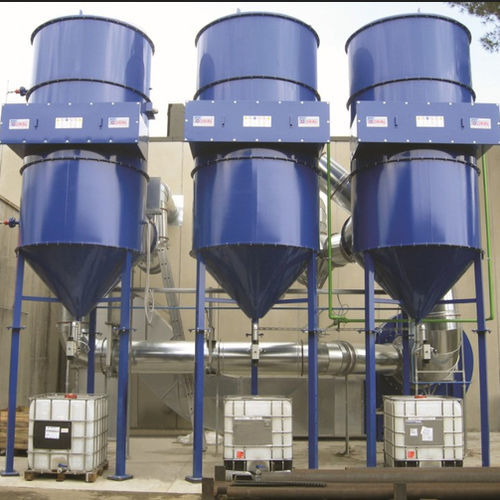

Oil mist separator Sneb series

cyclonecircularautomatic

Circular cyclonic fume and oil mist filter for centralized systems in environments where high concentrations of oil and its emulsions, hydrocarbons, glycol solutions, ammonia are detected. High separation efficiency: thanks to the aggregation principle of coalescence, it filters out all kinds of oily particles. Recovery possibilities: collected oil droplets can be reused in production processes, and filtered air is returned to the environment. Reduced maintenance requirements: maintains high efficiency for a long time. Optional timed automatic cleaning system. When the air, saturated with pollutant (oil and its emulsions, hydrocarbons, glycol solutions, ammonia, etc.) passes through the sneaker, suspended liquid is released through the droplet separator and metal mesh (demister). The droplets, because of their greater inertia, cannot make sudden changes in direction and are brought into contact with the surface of the filter where, by coalescent effect, they are retained. As the droplets penetrate the metal Mesh and settle on the wires constituting the filter mesh, they further increase their size and thus their weight, ending up by gravity toward the bottom of the separator.
