Bag filtration unit Mec SILO series
airdusthigh-efficiency

bag filtration unit
bag filtration unit
Add to favorites
Compare this product


Characteristics

Technology
bag
Designed for
air, dust
Other characteristics
modular, high-efficiency
Flow

Max.: 15,700 m³/h
(554,440.268 ft³/h)

Min.: 10,300 m³/h
(363,741.067 ft³/h)

Description

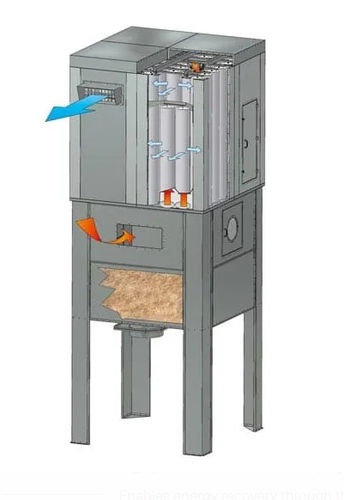

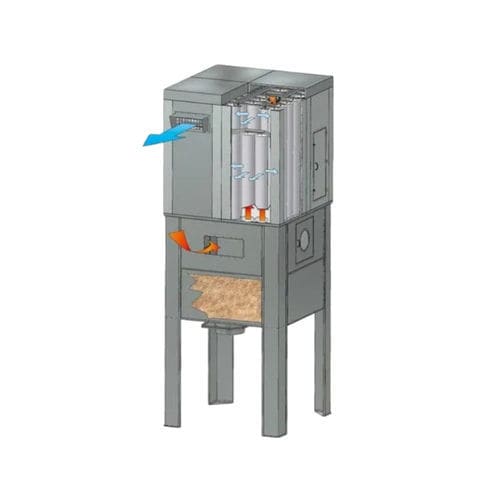

Silo version of the MEC modular substation with bag filters for suction and filtration of dust, chips and wood sawdust with continuous automatic discharge. The unit operates under positive pressure and has European ATEX certification. Highly efficient filtration due to polyester needled felt filter media Enables energy recovery through the ability to return filtered air to the room Easy maintenance through the doors provided Also suitable for potentially explosive atmospheres Automatic cleaning by internal electromechanical system with motor vibrator Upon request, it is available with sprinkler system Complete with debarker and star valve for automatic discharge
