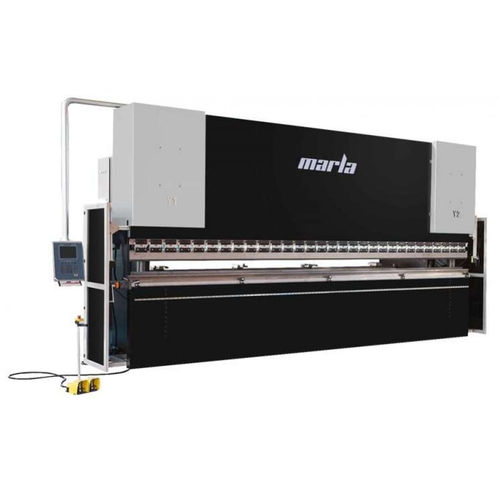

Hydraulic press brake CNCprecisionautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Other characteristics
- precision, automatic
- Press force
Max.: 19,928 kN
Min.: 2,192 kN
- Folding length
6,100 mm, 8,100 mm
(240.2 in, 318.9 in)
Description
• Bending power (tons) : 220 : 325 : 435 : 600
• Spacing between columns (mm) : 5100
• Moving closer speed (mm/s) : 100 : 80
• Bending speed (mm/s) : 7
• Beam return (mm/s) : 80 : 95 : 70 : 80
• Clearance (mm) : 530 : 490
• Table length (mm) : 240 : 350
• Table height (mm) : 1100 : 1220 : 990
• Stroke (mm) : 300
• Recess (mm) : 450
• Rear stop fingers : 3
• (mm/s) : 350
• Stop moving away (mm) : 750
• R axis speed (mm/s) : 300
• R axis motion (mm) : 250
• Motor power (kW) : 15 : 18,5 : 22 : 37
• Oil tank (l) : 220 : 260 : 260 : 450
• Dimensions (mm) : 6800x1700x2750 : 6800x2200x2750 : 6800x2100x2750
• Weight (kg) : 17000 : 21000 : 30000 : 31000
