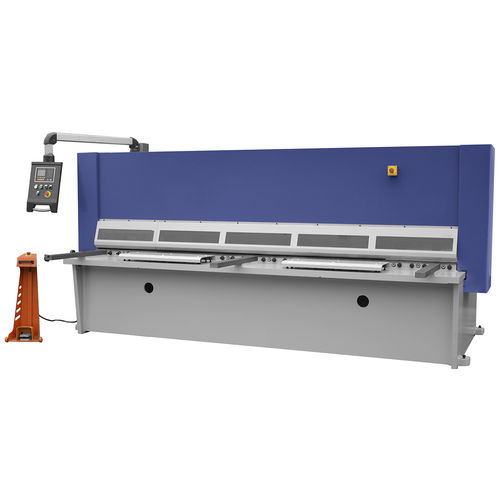

Hydraulic shear
for metal sheetsswing-beam

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
for metal sheets
Type
swing-beam
Plate thickness

8 mm
(0.3 in)

Description

• Shearing width : 3200 mm • Strength of sheets : 450 N/mm2 • Shearing angle : 1°30' • Max. length of back gauge : 600 mm • Stroke numbers : ≥10 min-1 • Distance between vertical columns : 3420 mm • Blade length : 3300 mm • Height of the working table : 800 mm • Main motor : 11 kW • Speed : 1465 rpm • Motor of back gauge : 0,37 kW • Speed : 1400 rpm • Axial Plunger pump : 25 l/min • Dimension : 3800x1700x1650 mm
