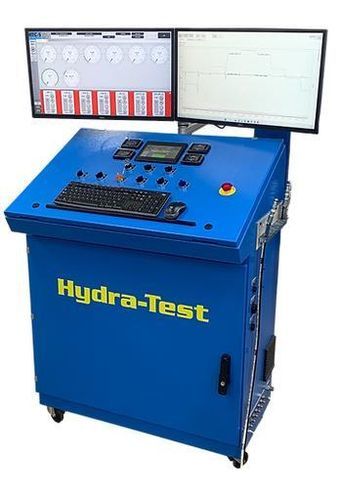

Software-configurable digital controller HT-DCC Deluxe

for test benchesprogrammable

Overview
General-purpose transmission dyno control system for Axi-line and Mustang transmission dynamometers. Replaces outdated controls with a cart-mounted all-in-one solution. Uses the HTC-S controller with modern processor architecture to enable continuous firmware updates and system expandability. Runs Hydra-Test Dyno Control Software derived from the company's valve-body platform with ongoing enhancements driven by industry feedback.

Features

• Full manual and automatic dyno controls for manual or automated testing
• Complete solenoid control supporting current late-model transmissions
• Hardware compatible with the TEHCM controller
• Modern processor and solenoid-drive electronics
• Designed for future firmware updates and expansion
• Continuous software development based on customer requirements
• Standardized use of the HTC-S controller across product lines

Compatibility & Services

• Configurable inputs and outputs to connect to any Axi-line or Mustang transmission dyno
• Adapters available for Axi-line and Zoom test cables
• On-site installation, operator training, and commissioning services

Software & Usability

• Easy-to-navigate Hydra-Test software platform
• Prewritten scripts for many common transmissions to accelerate test setup
• Full script editing via the HTC-S script editor for custom test development

Technical specifications

• 4 isolated analog outputs for dyno control (speed, motor torque, output load)
• 16 high- or low-side solenoid drivers with current monitoring (4 A capacity)
• Safety-rated E-Stop circuit components and monitoring PLC
• Manual controls and indicators on cart
• Hydra-Test “Chart Recording” DAQ for capturing known-good test data
• HTC-S script editor for custom scripts and solenoid modulation parameters
• Windows 11 PC with dual monitors (8 GB RAM, 256 GB SSD, Intel i5 or greater)
• Designed to interface with the Hydra-Test TEHCM Controller
• Power – 120 VAC, 15 A
• 16 analog inputs dedicated to dyno and transmission pressures
• 3 generic speed inputs (2- or 3-wire sensors, 20–100 PPR)
• 3 generic torque I/O inputs (one drive voltage, two strain-gauge signal conditioners)
• 7 main/clutch pressure sensors (0–500 PSI)
• 1 cooler pressure sensor (0–200 PSI)
• 1 cooler flow sensor (0–6 GPM)
• 1 cooler temperature sensor (0–300 °F)
• 16 analog inputs dedicated to internal transmission signals/sensors
• 4 speed sensor inputs (3-wire)
• 1 transmission temperature sensor input
• 1 transmission pressure transducer input
• 8 digital inputs for pressure switches / MLP switches
• 2 PWM inputs for Ford or Allison range indicator sensor
