Rotary dynamometer HT-DCC Deluxe

motorfor load measurement

Overview

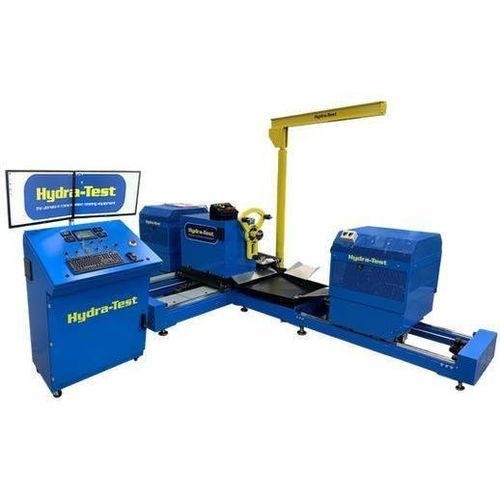

Hydra-Test transmission dynamometer system is a scalable, modular solution for controlled transmission testing and data acquisition. It integrates the HTC-S controller and HT-DCC Deluxe software to manage dyno operations, acquire test data and control transmission test sequences.

Product summary
The Hydra-Dyno HD 400 is configurable for front-, rear- or all-wheel-drive automotive units, as well as larger on- or off-highway transmissions and high-volume fleet testing. The platform supports incremental scaling of motor and load unit capacity to match test requirements.

Key features

• HTC-S controller for DAQ, dynamometer and transmission control.
• HT-DCC Deluxe control interface with advanced data collection and analysis options.
• Scalable architecture for FWD, RWD or AWD applications and larger on/off-highway units.
• Direct fitment with Axi-line mechanical adapters; adapter cables for Axi-line and Zoom test harnesses.
• Proven motor and load unit controls with ongoing controller and software development.
• Free software updates for 1 year from shipment.

Available configurations / Load & drive options

• Drive capability configurable from 40 to 100 HP (40 HP base model; ~30 kW).
• Drive voltage options: 208 / 240 / 480 VAC.
• Variable electric brake load units available for RWD, FWD or AWD transmissions; load capacity scalable (base 500 lb-ft units).

Compatibility
Mechanical adapters follow Axi-line dimensions and mounting; existing Axi-line master plates, spools and spacers directly fit Hydra-Dyno base fittings, simplifying integration with established test fixtures.

Model & base configuration notes
Base configuration: 40 HP motor with 500 lb-ft load units. System is designed for straightforward upgrade to larger motor/load combinations depending on test scope.

Specifications

• Controller: HTC-S (DAQ, dyno and transmission control)
• Control software: HT-DCC Deluxe (enhanced version)
• Base motor: 40 HP (~30 kW)
• Base load capacity: 500 lb-ft load units (scalable)
• Drive voltage options: 208 / 240 / 480 VAC
• Drive capability range: 40–100 HP (configurable)
• Load type: Variable electric brake load units (suitable for RWD, FWD, AWD)
• Mechanical compatibility: Direct fitment with Axi-line mechanical adapters; adapter cables for Axi-line and Zoom harnesses
• Software updates: Free updates for 1 year from shipment
