rotary potentiometer / motorized / wire-wound / precision
TCSI15-1KC171

{{requestButtons}}

Characteristics

  • Configuration:

    rotary

  • Operation:

    motorized

  • Technology:

    wire-wound

  • Other characteristics:

    precision

Description

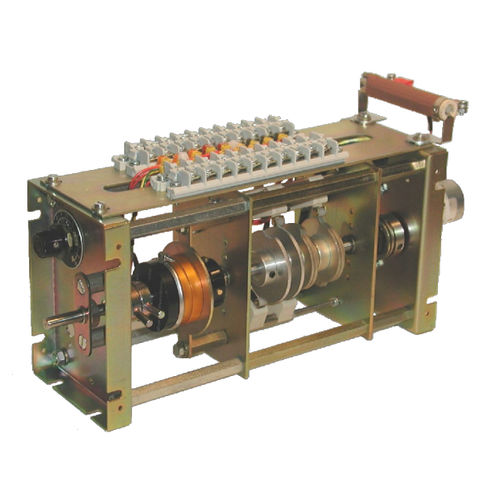

Coudoint presents a motorized potentiometer with DC Motor. They have an open frame module with a 24 VDC gear-motor and a precision wirewound potentiometer.

The SI15 model features 4 rotary cam switches. It has 1 start-of-travel switch / A/A profile cam, 1 end-of-travel switch / A/A profile cam, and 2 adjustable contacts B/A profile cam. The module has been developed for a 300° adjustable rotation angle and a 42-60 second cycle time. It can be adjusted by a voltage divider resistor using a T16 rotary rheostat.
