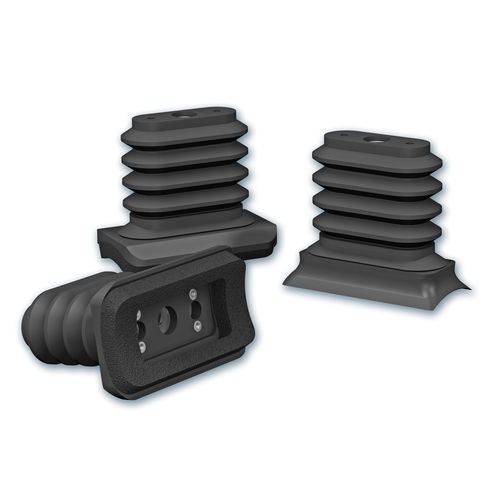

To meet the requirements for handling magnum bottles and textured bottles, COVAL has designed a range of 4.5 bellows suction cups, including internal reinforcements and a choice of two gripping interfaces.
• A magnum bottle interface featuring a lip shape and surface suited for the weight and diameter of magnum bottles
• A foam strip interface featuring a support shape and foam strip that compensates for any irregular surfaces on specific types of bottles (e.g. textured or faceted surface, coat of arms, etc.)
To increase the lifting force while maintaining a long travel distance and great flexibility for packing/unpacking applications, VSBO LM/BM suction cups are feature an upper insert, three reinforcements inside the bellows, and a lower reinforcement to fit the desired interface.
The VSBO LM/BM series suction cups are designed for handling bottles from the side.
• Version VSBO LM: vertical or horizontal gripping
• Version VSBO BM: horizontal gripping
Materials
Suction cups NBR Nitrile
Bottle Suction Cups With Gripping Interface
For textured bottles
We have designed the VSBO50105_BM10N suction cup for handling textured bottles. It features a curved gripping interface that fits the shape of the bottle and includes an EPDM foam seal that compensates for any irregular surfaces and guarantees an airtight seal.
The suction cup includes the following:
• One stainless steel upper insert
• One nitrile suction cup with 4 bellows, VSBO4095NBR
• Four stainless steel internal reinforcements
• One stainless steel lower reinforcement
• One gripping interface with 10 mm EPDM foam seal
