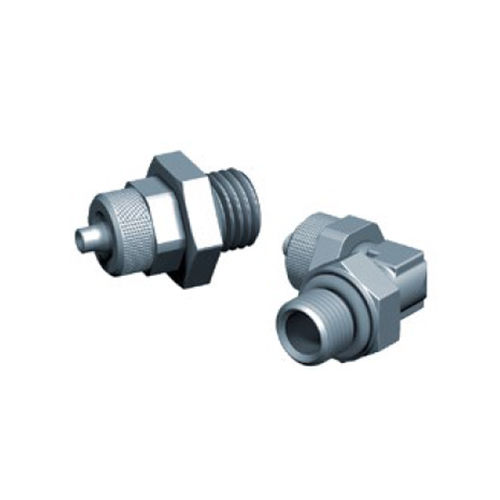

Vacuum fitting RDV - RCOV - Y series
screw-inelbowY

vacuum fitting
vacuum fitting
vacuum fitting
Add to favorites
Compare this product


Characteristics

Applications
for vacuum
Attachment
screw-in
Configuration
elbow, Y
Material
nickel-plated brass
Gender
male
Other characteristics
with O-ring, sealed, vacuum, for vacuum testing, orientable
Diameter

6 mm, 8 mm, 10 mm, 12 mm
(0.236 in, 0.315 in, 0.394 in, 0.472 in)

Description

Screwed Vacuum Fittings With O-Ring, RDV - RCOV - Y Series . 100% vacuum-tight . Integrated O-ring . Straight, adjustable elbow or Y fitting . Diameter options (mm): 5.5/8, 6/8, 7/10, 8/10,10/12 . Gas fittings options: G1/2", G1/4", G1/8", G3/8" Range of special vacuum-tight fittings, fitted with O-ring (blue). . 100% vacuum-tight and improved circuit sealing . Can be removed and reinstalled without requiring preparation of the tubing . Adjustable fittings for improved vacuum distribution . Material: nickel-plated brass Models: . RDV: Straight Fitting . RCOV: Elbow Fitting . Y: Y Fitting
