Textile cutter MWC-2100

jumbo rollsheet

Product overview

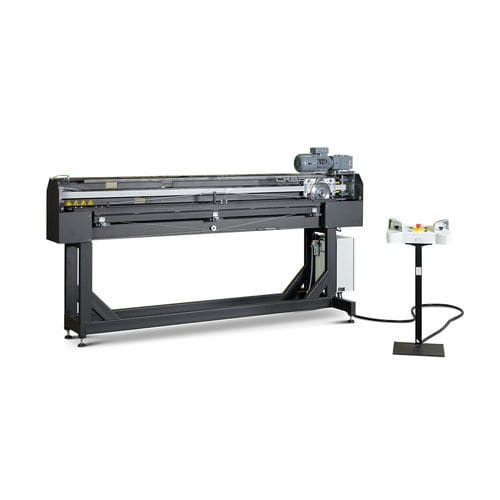

The Crest Multi Wall Cutter MWC-2100 cuts polycarbonate multiwall sheets with a razor-sharp blade instead of a saw, producing clean, burr-free edges with no swarf inside the sheet chambers. It processes sheets up to 2100 mm wide and up to 40 mm thick at cutting speeds up to 30 m/min. The cutter can be installed upright against a wall (compact footprint) or used horizontally as a standalone unit and is operated from a single, simple control panel.

Key features

• Blade cutting (no saw) for separation without swarf
• Clean, burr-free edges; tape on sheet ends remains intact
• No need to blow chambers with an air gun
• Quiet operation, noise level < 70 dB(A)
• Can be wall-mounted upright or used horizontal standalone
• Optional infeed/outfeed tables, length measurement and edge lamination with membrane foil

Where it is used

• Sheet distribution and cut-to-size: fast, clean cutting to customer length; edges go straight to packing or dispatch
• Roofing, veranda and carport systems: edges ready for sealing tape; sheets with tape are cut without damage
• Greenhouse and daylight panels: high-volume cutting in a clean workspace without saw dust

Best suited for

• Polycarbonate multiwall sheets up to 2100 mm wide
• Sheet thicknesses up to 40 mm
• Sheets that already carry edge tape when they are cut
• Production where swarf inside the chambers is not acceptable
• Workshops that want less noise and dust at the cutting station
• Plants with limited floor space using the upright wall-mounted setup
• Producers who want panel edges protected with membrane foil in the same step

Why it performs

• Blade instead of saw: separates the sheet without removing material, eliminating chips and swarf
• Edges without burrs: razor-sharp cutter leaves clean edges; cutting tolerance ±1 mm depending on sheet quality and thickness
• Better working conditions: no saw dust in the air and noise under 70 dB(A), resulting in a cleaner and quieter cutting station

Suitable materials

• Polycarbonate multiwall sheets (twin-wall, triple-wall, multi-cell)
• Sheets up to 40 mm thick
• Sheets with edge tape

When to choose the MWC-2100

• You currently saw multiwall sheets and must blow the chambers clean — the MWC-2100 removes that step
• Clean edges matter to the customer and burr-free edges are required
• Your sheets carry tape at the ends and must not be damaged during cutting
• You process wide sheets (up to 2100 mm) or thick sheets (up to 40 mm)
• Floor space is limited — upright installation footprint is 1250 × 1020 mm
• You want a quieter, cleaner workplace: below 70 dB(A) and no saw dust
• You want to speed up handling — infeed/outfeed tables and length measurement are available
• You want protected panel edges — optional edge lamination applies a membrane foil

Technical specifications
Max. cutting speed — 30 m/min
Max. sheet width — 2100 mm
Max. sheet thickness — 40 mm
Cutting tolerance — ±1 mm (depending on quality and thickness)
Noise level — < 70 dB(A)
Dimensions, installed upright (d × w × h) — 1250 × 1020 × 3000 mm
Installation — Upright against a wall, or horizontal standalone
Standard features — Razor-sharp cutter, clean cutting, simple operating panel
Options — Infeed table, outfeed table, length measurement on tables, edge lamination with membrane foil

Model / technical data

• Model: MWC-2100
• Max. cutting speed: 30 m/min
• Max. sheet width: 2100 mm
• Max. sheet thickness: 40 mm
• Cutting tolerance: ±1 mm (depending on quality and thickness)
• Noise level: < 70 dB(A)
• Installed upright footprint: 1250 × 1020 mm; height 3000 mm
• Options: infeed/outfeed tables, length measurement, edge lamination (membrane foil)
• Warranty: 5-year warranty applies if a service agreement is in place
