hydraulic gear pump / transfer
40 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

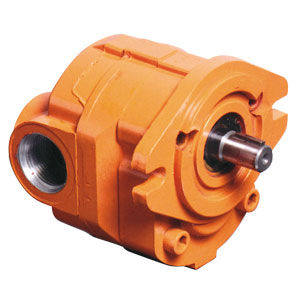

hydraulic gear pump hydraulic gear pump - 40 series
{{requestButtons}}

Characteristics

  • Type:

    gear

  • Other characteristics:

    transfer

  • Pressure:

    3,000 psi, 3,500 psi

Description

CROSS pumps and motors feature advanced design concepts which provide long life, reliable operation and high volumetric efficiency. Pumps may be chain, belt or direct driven by a gas engine or electric motor.*
Features:
Bi-directional rotation for motors.
Left, right or bi-directional rotation for pumps.
3000 psi (3500 psi max. shock press.)
3000 rpm max. continuous speed-(Limited to the maximum speed per chart below)
5/8 dia. shaft: 9 tooth spline or keyed
SAE "A" 2-bolt mounting
SAE #12 (3/4 ") o-ring ports on bi-rotational pumps and motors.
SAE #16 (1") o-ring inlet with SAE #12 (3/4") 0-ring outlet on single rotation pumps.
