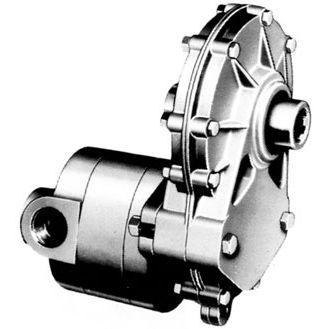

Hydraulic gear pump 50T series
transfer

hydraulic gear pump
hydraulic gear pump
Add to favorites
Compare this product


Characteristics

Type
gear
Other characteristics
transfer
Pressure

3,000 psi

Description

The CROSS series 50T pumps are designed to be driven by a 540 rpm PTO and provides a 3:1 speed increase for the pump to provide flow for a variety of farm applications: for example front end loaders, augers and wing fold implements. The thru-type 6 spline internal shaft permits the use of a stub shaft PTO driven accessory which simultaneously drives the pump. Features: 3000 psi system pressure (2700 psi on 50T038, 2000 psi on 50T052 at full flows) Mounting hole for torque arm attachment. SAE #20 (1 1/4") O-ring port inlet. SAE #16 (1") O-ring port outlet. All units left hand rotation. Side port location.
