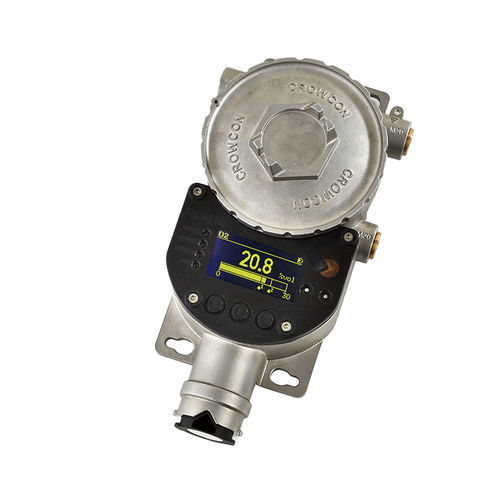

Gas detector XgardIQ

flammable gasbenzenechlorine

Product overview
The XgardIQ is an intelligent fixed gas detector and transmitter certified to SIL2. It supports multiple sensor technologies (catalytic, electrochemical, infrared, MEMS) and is available with a remote sensor option and a universal transmitter for flexible site configuration. OLED display and +Ve safety indicator provide clear status information in low light environments.

Key features

• Universal transmitter compatible with Crowcon sensor modules
• Auto-sense and auto-configure functions for quick commissioning
• OLED main display (128 x 64) and multi-colour LEDs including +Ve safety LED
• Non-intrusive calibration and Smart Bump / Speedy Bump test functions
• Event logging for alarms, faults and maintenance (on-screen and downloadable)
• Optional relays, HART® communications and RS-485 Modbus RTU

Easy & Safe to Use (highlights)

• Clear OLED readout and LED indicators for quick status checks
• Non-intrusive calibration avoids need for special permits or tools
• Positive safety indication (+Ve) for rapid operation confirmation
• Remote sensor option to improve detection coverage
• Event log for service history and diagnostics

Simple Installation & Maintenance (highlights)

• Universal transmitter with automatic 4–20 mA sink/source detection
• Auto-configure uploads gas type, range, units and alarm levels when a sensor module is fitted
• Single-handed sensor replacement and simple mounting options
• Optional relay outputs and digital communications for integration

Reliable (highlights)

• SIL2 functional safety certification
• Smart Bump and Speedy Bump test routines with reminders
• Calibration reminders and user-selectable full-scale ranges

Gases and Ranges
Ammonia (NH3) | Electrochemical | 0–50 ppm, 0–100 ppm, 0–1000 ppm | -20 to +40 °C
Carbon Monoxide (CO) | Electrochemical | 0–250 ppm, 0–500 ppm, 0–1000 ppm | -30 to +50 °C
Hydrogen Sulphide (H2S) | Electrochemical | 0–25, 0–50, 0–100, 0–200 ppm | -40 to +70 °C (sensor dependent)
Oxygen (O2) | Electrochemical | 0–25% Vol. | -20 to +50 °C
Flammable gases* | MEMS / Catalytic / Infra-Red | 0–100% LEL | -40 to +75 °C (variant dependent)
Typical catalytic/IR/MEMS options: Acetylene, Benzene, Ethanol (IR), Heptane, Hydrogen, LPG, Methane, Pentane, Propane

Technical specifications

• Size: H278 x W140 x D89 mm
• Weight: 4.1 kg
• Enclosure: 316 stainless steel
• Ingress protection: IP66
• Connections: three M20 or ½” NPT entries (certified removable plugs on some entries)
• Power: 14–30 VDC, less than 4 W
• Display: OLED 128 x 64 pixels; LEDs amber/red/green and blue +Ve
• Outputs: 4–20 mA sink or source (Auto-Sense/manual); RS-485 Modbus RTU; HART 7 over 4–20 mA (optional)
• Optional relays: Alarm 1, Alarm 2, Fault — SPCO 5 A, 230 Vac, configurable
• Event logging: on-screen and downloadable to PC
• Operating temperature: ATEX/IECEx -40 °C to +75 °C (FM variants to +70 °C); sensor module temperatures vary
• Humidity: 0–95% RH non-condensing
• Repeatability: ±2% FSD; Zero drift: ±2% FSD per year max
• Approvals: ATEX, IECEx, FM (where applicable), CE, INMETRO, CNEx and others depending on configuration
• Functional safety: SIL2 certified (IEC 61508, EN 50402)
