Electric reach truck ESR 1220
side-facing seatednarrow-aislefor warehouse

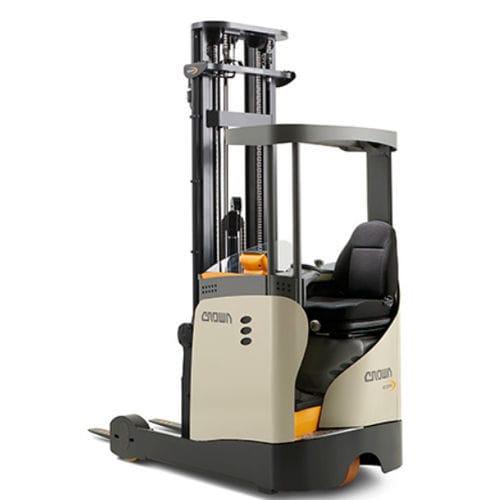

Electric reach truck - ESR 1220 - CROWN - side-facing seated / narrow-aisle / for warehouse
Electric reach truck - ESR 1220 - CROWN - side-facing seated / narrow-aisle / for warehouse
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
side-facing seated
Applications
storage, for warehouse, industrial, narrow-aisle, precision
Other characteristics
high-performance, compact, increased safety, heavy-duty, for high-level work, Vulkollan® wheel
Carrying capacity

Min.: 1,400 kg
(3,086.5 lb)

Max.: 1,600 kg
(3,527.4 lb)

Lifting height

9,175 mm
(361.22 in)

Overall width

1,120 mm
(44.1 in)

Overall length

Min.: 1,166 mm
(45.9 in)

Max.: 1,431 mm
(56.3 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Min.: 1,855 kg
(4,089.6 lb)

Max.: 2,306 kg
(5,083.9 lb)

Track width rear

Min.: 985 mm
(38.8 in)

Max.: 1,476 mm
(58.1 in)

Free lift

Min.: 1,350 mm
(53.1 in)

Max.: 5,405 mm
(212.8 in)

Overall height with mast raised

Min.: 5,025 mm
(197.8 in)

Max.: 14,830 mm
(583.9 in)

Height to top of overhead guard

2,175 mm
(85.6 in)

Seat height

1,125 mm
(44.3 in)

Fork carriage width

750 mm
(29.5 in)

Ground clearance at center of wheelbase with load

76 mm
(3 in)

Turning circle radius

1,638 mm, 1,733 mm
(64.5 in, 68.2 in)

Travel speed

10 km/h, 11 km/h
(6.2 mph, 6.8 mph)

Lifting speed

0.4 m/s, 0.6 m/s
(1.312 ft/s, 1.969 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Gradeability

12 %

Maximum operating pressure

210 bar
(3,045.8 psi)

Noise level

65 dB

Description

This narrow-chassis reach truck features the advanced connectivity, performance and features of the Gena operating system in a size that is ideal for confined spaces, drive-in racks, narrow rack aisles and block stacking applications. Real Performance is Within Reach ESR Series reach trucks with Xpress Lower technology can double lowering speed to improve cycle time and increase productivity while regenerative lowering reduces energy consumption. Built-in connectivity provided by the Gena operating system provides operators, managers and service engineers with a connected, data-rich environment that's more human, personalised and interactive. Work Smarter and Faster at Height On an ESR reach truck, operators work with skill and precision at any height without compromising productivity. The ESR Series features various combinations of advanced hydraulics and motors, programmable features, intuitive displays, one-touch controls and camera options that all work together to raise performance. The ESR reach trucks’ optional Xpress Lower technology can double lowering speeds, resulting in substantial savings in time and money. The optional Auto Height Select feature automatically stops the forks at programmed rack heights - at the push of a button without looking away from the load - to improve throughput and avoid product, rack and lift truck damage. The Tilt Position Assist option compensates for mast and carriage deflection and automatically levels forks relative to the ground for more precise positioning.
