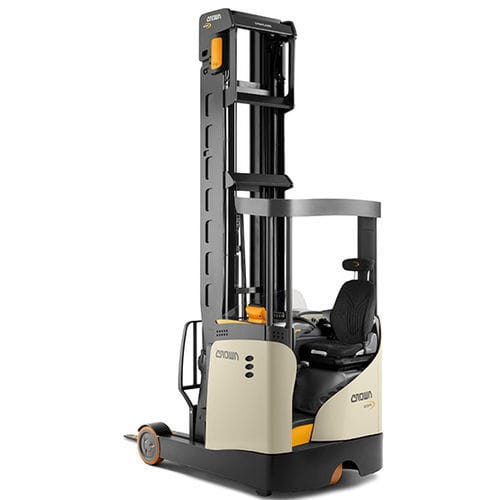

Electric reach truck ESR 1260
side-facing seatednarrow-aislefor warehouse

Electric reach truck - ESR 1260 - CROWN - side-facing seated / narrow-aisle / for warehouse
Electric reach truck - ESR 1260 - CROWN - side-facing seated / narrow-aisle / for warehouse
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
side-facing seated
Applications
loading, storage, unloading, for warehouse, narrow-aisle, precision
Other characteristics
high-performance, compact, increased safety, heavy-duty, Vulkollan® wheel
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 1,400 kg
(3,086.5 lb)

Lifting height

14,205 mm
(559.25 in)

Overall width

1,285 mm
(50.6 in)

Overall length

Max.: 1,489 mm
(58.6 in)

Min.: 1,281 mm
(50.4 in)

Load center distance

600 mm
(23.6 in)

Weight without load

2,534 kg, 2,557 kg, 2,661 kg
(5,586.5 lb, 5,637.2 lb, 5,866.5 lb)

Track width rear

Max.: 1,476 mm
(58.1 in)

Min.: 985 mm
(38.8 in)

Free lift

Max.: 5,405 mm
(212.8 in)

Min.: 1,350 mm
(53.1 in)

Overall height with mast raised

Max.: 14,830 mm
(583.9 in)

Min.: 5,025 mm
(197.8 in)

Height to top of overhead guard

2,175 mm, 2,375 mm, 2,554 mm
(85.6 in, 93.5 in, 100.6 in)

Seat height

1,113 mm
(43.8 in)

Fork carriage width

750 mm, 770 mm
(29.5 in, 30.3 in)

Ground clearance at center of wheelbase with load

76 mm
(3 in)

Turning circle radius

1,645 mm, 1,734 mm
(64.8 in, 68.3 in)

Travel speed

14 km/h
(8.7 mph)

Lifting speed

0.58 m/s, 0.71 m/s, 0.8 m/s
(1.903 ft/s, 2.329 ft/s, 2.625 ft/s)

Lowering speed

0.5 m/s, 0.57 m/s
(1.64 ft/s, 1.87 ft/s)

Gradeability

12 %

Maximum operating pressure

210 bar
(3,045.8 psi)

Noise level

65 dB

Description

This heavy-duty reach truck offers greater lifting and lowering speeds at height for more productivity in demanding high-bay applications. An optional cold store cabin is available for extreme temperature environments. Real Performance is Within Reach ESR Series reach trucks with Xpress Lower technology can double lowering speed to improve cycle time and increase productivity while regenerative lowering reduces energy consumption. Built-in connectivity provided by the Gena operating system provides operators, managers and service engineers with a connected, data-rich environment that's more human, personalised and interactive. Work Smarter and Faster at Height On an ESR reach truck, operators work with skill and precision at any height without compromising productivity. The ESR Series features various combinations of advanced hydraulics and motors, programmable features, intuitive displays, one-touch controls and camera options that all work together to raise performance. The ESR reach trucks’ optional Xpress Lower technology can double lowering speeds, resulting in substantial savings in time and money. The optional Auto Height Select feature automatically stops the forks at programmed rack heights - at the push of a button without looking away from the load - to improve throughput and avoid product, rack and lift truck damage. The Tilt Position Assist option compensates for mast and carriage deflection and automatically levels forks relative to the ground for more precise positioning.
