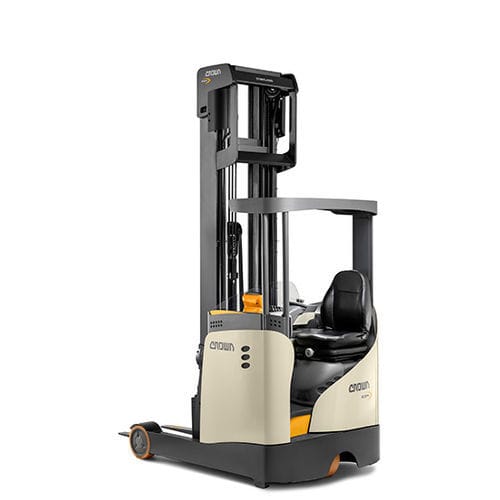

Electric reach truck ESR 1240
side-facing seatednarrow-aislefor cold storage warehouses

Electric reach truck - ESR 1240 - CROWN - side-facing seated / narrow-aisle / for cold storage warehouses
Electric reach truck - ESR 1240 - CROWN - side-facing seated / narrow-aisle / for cold storage warehouses
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
side-facing seated
Applications
loading, transport, unloading, for warehouse, industrial, narrow-aisle, precision, for cold storage warehouses
Other characteristics
high-performance, increased safety, heavy-duty, for high-level work, Vulkollan® wheel
Carrying capacity

Min.: 1,400 kg
(3,086.5 lb)

Max.: 2,000 kg
(4,409.2 lb)

Lifting height

14,205 mm
(559.25 in)

Overall width

1,285 mm
(50.6 in)

Overall length

Min.: 1,186 mm
(46.7 in)

Max.: 1,489 mm
(58.6 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Min.: 2,055 kg
(4,530.5 lb)

Max.: 2,555 kg
(5,632.8 lb)

Track width rear

Min.: 985 mm
(38.8 in)

Max.: 1,476 mm
(58.1 in)

Free lift

Min.: 1,350 mm
(53.1 in)

Max.: 5,405 mm
(212.8 in)

Overall height with mast raised

Min.: 5,025 mm
(197.8 in)

Max.: 14,830 mm
(583.9 in)

Height to top of overhead guard

2,175 mm, 2,375 mm, 2,554 mm
(85.6 in, 93.5 in, 100.6 in)

Seat height

1,125 mm
(44.3 in)

Fork carriage width

750 mm
(29.5 in)

Ground clearance at center of wheelbase with load

76 mm
(3 in)

Turning circle radius

1,645 mm, 1,734 mm
(64.8 in, 68.3 in)

Travel speed

10 km/h, 11 km/h
(6.2 mph, 6.8 mph)

Lifting speed

0.4 m/s, 0.6 m/s
(1.312 ft/s, 1.969 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Gradeability

12 %

Maximum operating pressure

210 bar
(3,045.8 psi)

Noise level

65 dB

Description

This standard-chassis reach truck provides the breakthrough connectivity and performance of the Gena operating system in a durable, value-packed solution with operator-friendly features, including an optional cold store cabin. Real Performance is Within Reach ESR Series reach trucks with Xpress Lower technology can double lowering speed to improve cycle time and increase productivity while regenerative lowering reduces energy consumption. Built-in connectivity provided by the Gena operating system provides operators, managers and service engineers with a connected, data-rich environment that's more human, personalised and interactive. Work Smarter and Faster at Height On an ESR reach truck, operators work with skill and precision at any height without compromising productivity. The ESR Series features various combinations of advanced hydraulics and motors, programmable features, intuitive displays, one-touch controls and camera options that all work together to raise performance. The ESR reach trucks’ optional Xpress Lower technology can double lowering speeds, resulting in substantial savings in time and money. The optional Auto Height Select feature automatically stops the forks at programmed rack heights - at the push of a button without looking away from the load - to improve throughput and avoid product, rack and lift truck damage. The Tilt Position Assist option compensates for mast and carriage deflection and automatically levels forks relative to the ground for more precise positioning.
