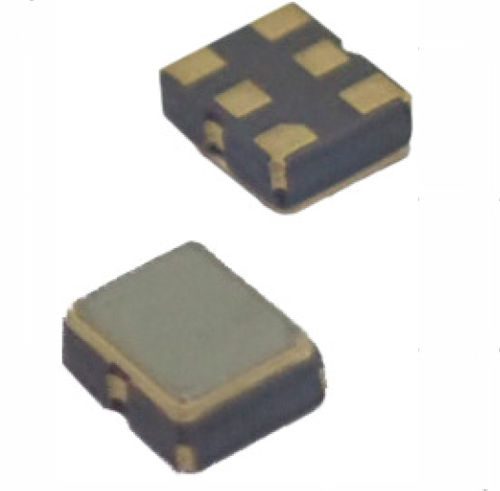

Crystal oscillator 626

electromechanicalclocklow phase noise

Very-low Jitter Clock Oscillator, 2.5mmx2.0mm Package Low Phase Jitter – 500fs typical performance LVPECL or LVDS output options Extended temperature range available, -40°C to +105°C +1.8V Operation – LVDS output only Clock Oscillators are the heart of frequency control products and CTS offers the widest array of Crystal Oscillators (XOs) in the industry. Whether you need a simple reference clock or you are developing a mission critical system, we have the right crystal oscillators to help. Our team will help you select the right clock oscillators in packages as small as 2.5mm×2.0mm. Features Low phase noise fundamental and 3rd overtone crystal designs Ultra-low phase noise and jitter; as low as -170dBc/Hz, to 22fs Standard output types – HCMOS, LVPECL, LVDS & HCSL High frequency options available – reaching 1,000MHz Low cost small package footprints – to 2.5mmx2.0mm size Real Time clock reference @ 32.768kHz w/ ultra-low current option available [10µA maximum] Automotive [AEC-Q200] & industrial grade products; operating temperatures to -40°C to +125°C High Reliability/COTS/High Temperature options [to +200°C] Extreme Temperature [reaching -55°C to +125°C], Shock and Vibration capability
