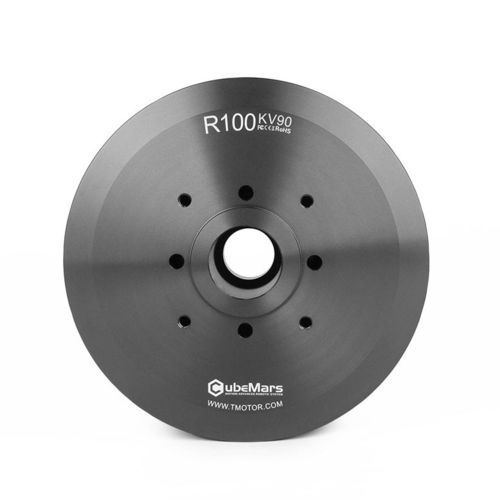

DC torque motor R100 KV90BLDC48 Vmaintenance-free
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Voltage
- 48 V
- Protection class
- maintenance-free
- Configuration
- permanent magnet, external rotor
- Number of poles
- multipole
- Cooling mechanism
- air-cooled, air-cooled
- Applications
- for robotics, packaging machine, for medical applications, for the semiconductor industry, for automotive applications
- Other characteristics
- direct-drive, high-torque, high-precision, high-speed, high-power, low-inertia, low-noise
- Power
Max.: 4,704 W
(6.396 hp)Min.: 1,584 W
(2.154 hp)- Intensity
Max.: 98 A
Min.: 33 A
- Torque
4 Nm
(2.9502 ft.lb)Max.: 12 Nm
(8.8507 ft.lb)Min.: 4 Nm
(2.9502 ft.lb)- Rotational speed
3,800 rpm
(23,876.1 rad.min-1)- Diameter
106.8 mm
(4.2 in)- Operating temperature
25 °C
(77 °F)
Description
R100 KV90
$426.90
Available points：0 Points ▏ Points reward：426 Points
Promotion
Every $200, $20 off
• Integrated with hall sensors, Edeg120±20°
• Special heat dissipation design
• Low cogging torque&rotor inertia
• Max torque 11Nm
Specifications-R100
Weight(g) : 731
Voltage(V) : 48
Rated Torque(Nm) : 3.7
Peak Torque(Nm) : 11
Max Speed@Rated Torque(rpm) : 3800
Rated Current(A) : 35
Peak Current(A) : 104
Kt(Nm/A) : 0.106
Kv(RPM/V) : 90
Ke(V/rpm) : 0.0111
Km(Nm/Vw) : 0.47
Number of Pôle-Pair : 20
Résistance Phase to Phase(mQ) : 51
Inductance Phase to Phase(uH) : 33
OD(mm) : CP106.8
Height(mm) : 40.5
Max torque weight ratio(Nm/kg) : 16.4
