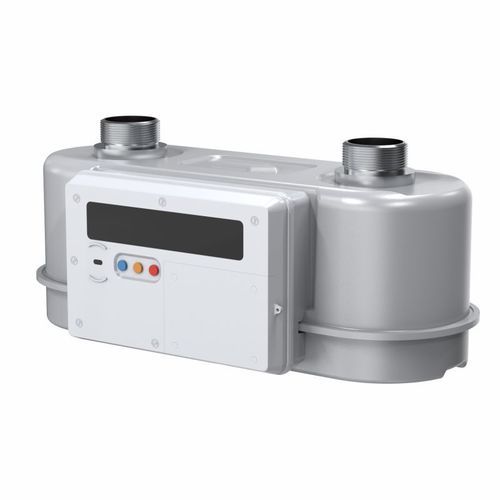

Ultrasonic gas meter USM-CS series

IoT

USM-CS Series Ultrasonic Gas Meter is a type of electronic meter that adopts TOF (Time of Speed) principle to measure flow velocity of gas medium. Employing advanced ultrasonic technology, this meter ensures high-precision, wear-free gas flow measurement, providing accurate and reliable results over time. With Cubic's advanced algorithm technology, the Cubic ultrasonic gas meter offers excellent adaptability to real gas conditions and can accurately measure natural gas, natural gas with 23% hydrogen (H₂), and LPG. USM-CS Series integrates seamlessly with NB-IoT、LTE、LoRa and RS485 technologies, facilitating real-time remote monitoring and management. This allows users to effortlessly track gas consumption and monitor the meter’s status from anywhere. Featuring a center distance compatible with existing pipe spacing in most countries, the meter eliminates the need for eccentric adapters or pipeline modifications, reducing installation complexity and cost. Compliant with international standards such as DLMS, WELMEC 72, UNI/TS, and MID EN14236 & EN 12405-1:2021, the USM-CS Series Ultrasonic Gas Meter is well-suited for global market applications. Features • Long-time Accuracy Ultrasonic technology features no mechanical wear, ensuring no accuracy degrade over long-term usage and no magnetic field effects • Good Gas Sources Adaptability Various real-gas test and intelligent software algorithm ensure compatibility with different gas sources • Low pressure loss & maintenance-free With no moving parts, the meter offers minimal obstruction to gas flow and eliminates wear and tear, requiring no maintenance • Real-time temperature and pressure correction Temperature and pressure correction are standard • Low Power Consumption Both hardware and software patent design ensure ultra-low power consumption, enabling a battery lifespan of over 10 years • Integrated Remote Transmission Modules Built-in NB-IoT、LTE、LoRa and RS485 modules allow real-time gas consumption monitoring and meter status management • Instant Alarms for Easy Service Alerts are triggered for tampering attempts, low battery levels, and battery removal, ensuring timely service • Strong expandability The fully electronic design supports easy expansion for additional functions such as remote charging, valve control, and various alarms Specifications • Measurement Range: USM-CS-G10: 0.116 m³/h [3.53 ~ 565.03 ft³/h]; USM-CS-G16: 0.1625 m³/h [5.65 ~ 882.87 ft³/h]; USM-CS-G25: 0.2540 m³/h [8.83 ~ 1412.59 ft³/h]; USM-CS-G40: 0.465 m³/h [14.13 ~ 2295.45 ft³/h] • Accuracy: Class 1.5 • Error (@ -25℃55℃; -40℃60℃): Qmin≤Q<0.1Qmax: ±3%; 0.1Qmax≤Q≤Qmax:±1.5% • Gas Medium: Natural Gas, Natural Gas+23%H2, LPG • Case Housing: Steel Case • Battery: Lithium battery ER34615/3.6V • Connector Type: Screw thread,G2(G10, G16); Screw thread,G2-1/2(G25, G40) • Dimensions (mm): 476.9*222.4*202.5 • Weight (kg): 12 • Center Distance of ConnectoCS (mm): 280; 250(optional)(G10, G16); 335(G25, G40) • Working Pressure: 0~50kPa / 0~7.25psi • Pressure Loss: 375pa / 0.054psi or less(G10 and G16); 300pa / 0.044psi or less(G25); 400pa / 0.058psi or less(G40) • Working Temperature: -25℃55℃; -13℉ ~ 131℉ • Storage Temperature: -25℃55℃; -13℉ ~ 131℉ • Protection Class: IP65
