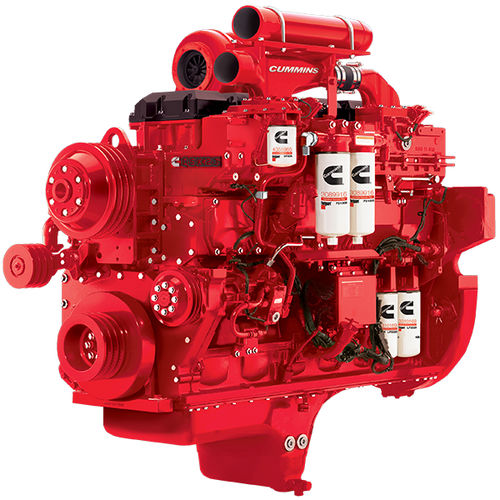

Diesel engine QSK23
6-cylinderturbochargedin-line

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, in-line
Product applications
for mining applications, for railway applications, rail
Other characteristics
4-stroke
Power

Max.: 597 kW
(811.694 hp)

Min.: 391 kW
(531.612 hp)

Torque

Max.: 3,084 Nm
(2,274.6417 ft.lb)

Min.: 2,407 Nm
(1,775.3121 ft.lb)

Rotational speed

1,500 rpm
(9,424.78 rad.min-1)

Displacement

23.2 l
(6.129 gal)

Weight

2,858 kg
(6,300.81 lb)

Length

1,859 mm
(73.2 in)

Width

940 mm
(37 in)

Height

1,656 mm
(65.2 in)

Description

Your business depends on people who've got what it takes - supported by equipment with the power, the durability and the ratings to get the job done. Known for excellent power density, economical operation and exceptional uptime, the QSK23 is a powerful example of Cummins Quantum System technology at work. Including self-diagnostics, prognostics and more. It uses the same rugged power cylinder design proven in our larger diesels - for the performance and durability you need and the low maintenance and operational costs today's oil and gas business demands. Available in 760-950 hp ratings, these powerful engines come with high-tech electronic features for superior reliability and durability on every job. These heavy-duty diesels meet every current EPA and Euro standard for Tier 1 and will meet Tier 2 with minor modifications. Every QSK23 engine comes with a 2-year/2,000-hour base warranty, with 3-year/10,000-hour standard protection on major components.
