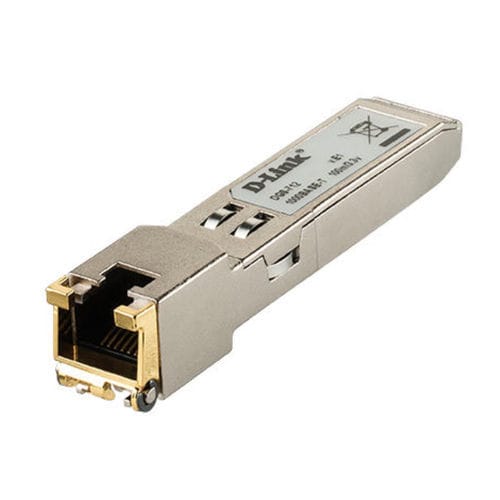

Gigabit Ethernet transceiver DGS-712

SFPdata

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper. Auto MDI/MDIX Automatic crossover detection enabled External crossover cable not required Data Rate 1,000 Mbps (IEEE 802.3 compatible) 1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only Cable Type Cat. 5 twisted-pair cable Maximum Cable Distance Coverage 100 meters Supply Current 350mA (typical) 400mA (maximum) 1.3W max power over full range of voltage and temperature Input Voltage 3.1V (minimum) 3.3V (typical) 3.5V (maximum) Referenced to GND Surge Current 30mA Hot plug above steady state current Dimensions (W x D x H) .47” x 2.95” x .47” (11mm x 75mm x 11mm) Weight .53 lbs (0.2 kg) Operating Temperature 32° to 185° F (0° to 85° C) Storage Temperature -40° to 185° F (-40° to 85° C)
