Relative humidity probe DB115-436wall-mountdew-pointanalog
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- wall-mount
- Technology
- dew-point
- Output
- analog
- Supply voltage
- DC
- Protection level
- waterproof, corrosion-resistant
- Other characteristics
- with temperature measurement, high-precision, precision
- Applications
- for high-temperature applications, for process applications
- Measuring range (%)
Max.: 100 %
Min.: 0 %
- Precision
2 %
- Measuring range (temperature)
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Accuracy (temperature)
0.2 °C
(32.36 °F)- Working temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

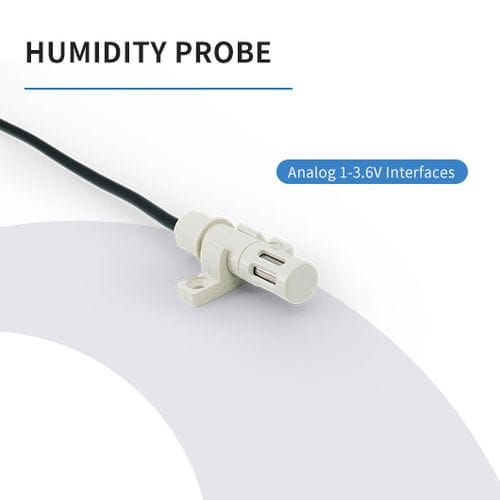

1-3.6V Output Humidity Probe for Climate Chamber
The relative humidity probe DB115-436 with is an economical humidity module in an industrial plastic housing. The probe with analog 1-3.6V signal output is designed for OEM applications where reliable and accurate measurements are required. The module's linear voltage output enables direct connection to a micro-controller. It can be applied in various Industrial fields and process control etc.
Specification
Measurement Range:
-Humidity: 0 ~ 100 %RH;
-Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F): -
-Humidity: ±2.0 %RH;
-Temperature: ±0.2 °C (31.64 ~ 32.36 °F)
Response Time (T63):≤8 S
Output: Analog voltage 1-3.6V
Power Supply Input: 2.4 - 5.5 VDC
Working Temperature:-20 ~ 80 °C (- 4 ~ +176 °F)
Working current:≤15mA
