Relative humidity probe DB130-436insertionduct-mountfor integration
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- insertion, duct-mount, for integration
- Technology
- dew-point
- Output
- analog
- Supply voltage
- DC
- Protection level
- waterproof, corrosion-resistant
- Other characteristics
- stainless steel, with temperature measurement, high-precision, precision
- Applications
- for high-temperature applications, for process applications
- Measuring range (%)
Max.: 100 %
Min.: 0 %
- Precision
2 %
- Measuring range (temperature)
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Accuracy (temperature)
0.2 °C
(32.36 °F)- Working temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description

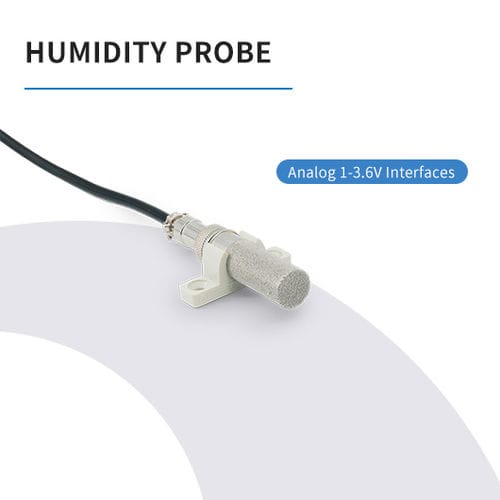

1-3.6V Relative Humidity Module upto 120℃ for Climate Chamber
The robust and precise DB130-436 sintering humidity module is with analog 1-3.6V signal output. It is a humidity probe designed for Original Equipment Manufacturer (OEM) applications where reliable and accurate measurements are required.The module's linear voltage output enables direct connection to a micro-controller.
With features of full interchangeability, high reliability and log-term stability and temperature resistance(upto 120℃), it can be applied in various Industrial fields and process control etc.
Specification
Measurement Range:
-Humidity: 0 ~ 100 %RH;
-Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0~90%RH@+25 °C(+77 °F): -
-Humidity: ± 2.0 %RH;
-Temperature: ± 0.2 °C (31.64 ~ 32.36 °F)
Response Time (T63): ≤8 S
Power Supply Input: 2.4-5.5 VDC
Working Temperature：-40 ~ 120°C (- 40 ~ +248 °F)
Working current：≤15mA
Output: Analog voltage 1 - 3.6V
Probe material：Stainless steel
