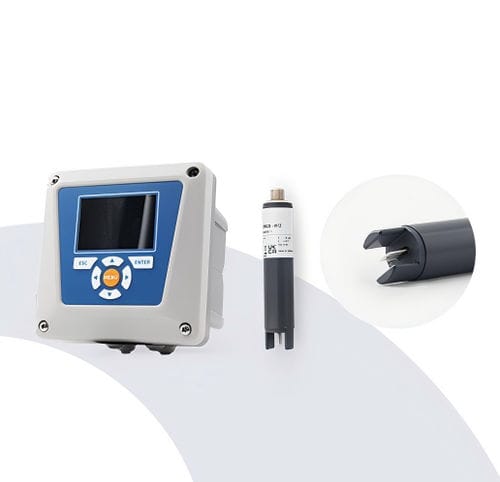

Water analyzer W519-DCCF1

monitoringprocessfor boiler

Product Overview
W519-DCCF1 is an online free chlorine monitoring system combining the W519 transmitter and a high-stability DCC1 amperometric free chlorine sensor. Designed for continuous measurement in RO feed water and membrane protection applications, it detects residual free chlorine down to 0.05 mg/L with fast response, strong signal stability and no reagents required. The sensor is optimized for long-term operation in low or zero chlorine environments and the transmitter supports industrial communications and low maintenance operation.

Application

• Reverse osmosis (RO) pretreatment and feed water monitoring
• RO membrane protection to prevent oxidative damage
• Desalination plant pretreatment and process monitoring
• Industrial pure water and boiler feedwater systems
• Drinking water disinfection and recreational water monitoring

Technical Parameters - W519 Transmitter

• Display: 3.5-inch color LCD
• Power supply: AC 100–240 V, 50/60 Hz
• Analog outputs: 2 × 4–20 mA (configurable)
• Communication: RS485 Modbus RTU
• Relay outputs: 2 × SPDT relay
• Data storage: SD card (export supported)
• Protection class: IP65
• Material: polycarbonate
• Installation: wall / panel / pipe mount
• Dimensions: 155 × 155 × 120 mm
• Weight: 0.85 kg

Technical Parameters - DCC1 Free Chlorine Sensor

• Measurement parameter: Free chlorine (pH dependent)
• Measuring range: 0.05 – 10.00 mg/L
• Response time: T90 ≈ 20 seconds
• Run-in time: ≈ 15 minutes
• Conductivity range: 0.2 – 10 mS/cm
• Pressure rating: up to 8 bar
• Protection class: IP68
• Material: PVC‑U
• Maintenance: low / maintenance-free; no reagents or consumables
• Key advantage: stable performance in low/zero chlorine water, automatic temperature compensation

Key Specifications

• Model: W519-DCCF1
• Sensor type: amperometric DCC1 free chlorine sensor
• Ultra-low detection limit: 0.05 mg/L
• Suitable for RO membrane protection and desalination pretreatment
• Industrial communication and configurable analog/relay outputs
• Low maintenance design for continuous online monitoring
