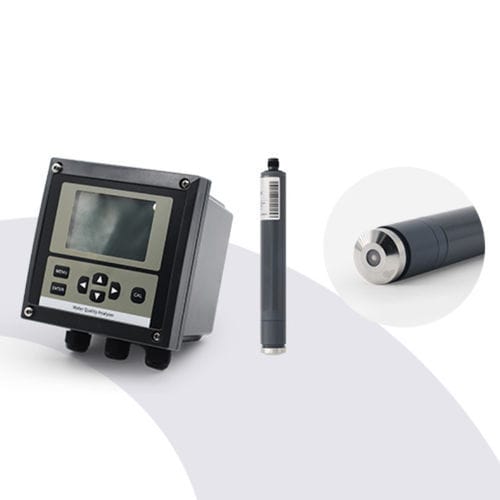

Water analyzer W501-DOZ10.1

ozonealuminumbeverage

The online ozone analyzer is equipped with a German-made OZ10.1 sensor, adopting special osmotic membrane technology. It resists chemical interference (mainly surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, and minimal maintenance, it provides users with reliable and accurate data.Featuring an LCD screen, the instrument can automatically identify measured parameters. It has current 4-20mA and RS485 output, allows free setting of the measurement range, and is equipped with high and low limit alarm prompts, three-way relay control switches, an adjustable hysteresis range, and multiple automatic electrode calibration methods.It is widely used in drinking water disinfection and purification, swimming pool water disinfection, surface disinfection of food and beverage packaging containers, and barreled water disinfection etc.Product DetailsThe entire measurement system mainly consists of two parts: the instrument and the Ozone sensor OZ10.1. The instrument displays the ozone value (main measured value), the pH value of the aqueous solution (a pH electrode is required to be optional), and the working status. It outputs signals such as analog quantity, digital quantity, and switching quantity.The sensor adopts the original imported RG brand from Germany and works on the principle of the constant current method of the three (double) - electrode film - covered type, which has the characteristics of anti - interference and anti - pollution.Application FieldsDrinking water disinfection and purificationSwimming pool water disinfectionSurface disinfection of food and beverage packaging containersBarreled water disinfection, etc.Functional FeaturesDual-channel access, which can be configured according to needs.Achieve plug-and-play for sensors. The installation and replacement of electrodes are fast and convenient.The operation interface is simple, which can reduce operational errors and ensure reliable results.Visual operation on the LCD screen with a rich and comprehensive interface content.It has multiple data output methods such as 4-20mA and MODBUS RS485.The controller supports wall-mounted installation/panel installation/clamp-tube installation.Made of aluminum alloy material, it has high strength, oxidation resistance, and corrosion resistance, enhancing texture and market attractiveness.Technical ParametersSpecificationDetailed informationMeasurement ParametersOzone, pH (optional)Measuring Ranges0.005～0.500mg/L; 0.005～2.000mg/L; 0.05～5.00mg/L; 0.05～10.00mg/L; 0.05～20.00mg/LLower Limit of Measurement0.005mg/LResolution0.001～0.01mg/L (depending on the measuring range)Accuracy (@25℃, pH 7.2)0-1ppm: ±2% of measured value or ±0.03ppm (whichever is larger)1-2ppm: ±2% of measured value or ±0.03ppm (whichever is larger)0-10ppm: ±2% of measured value or ±0.3ppm (whichever is larger)10-20ppm: ±5% of measured value or ±0.5ppm (whichever is larger)Response timeThe fastest T90 ≈ 15 secondsDriftApproximately -1% per month (after calibration at 25℃, pH = 7.2)PH range2.0～11.0Maintenance Cycle≥90 daysConductivity Range10μS/cm～50mS/cmTemperature range5~50℃DisplayLCD liquid-crystal screenPower supply105～235VAC, 50±1Hz / 24VDC±5% (DC is optional)Power≤12W (including the sensor)Analog OutputTwo ways of analog outputs (load resistance < 500Ω)Digital outputRS485 interface, MODBUS RTU protocolRelay outputThree-way relay 5A 250VAC, 5A 30VDC; Three-way relay 3A 250VAC; 3A 28VDC or 120VACMaterialBottom shell: Cast aluminum with plastic spray coatingTop cover: PA66 + 30GF with paint coatingSize145*145*174mm (H*W*D)Weight1.8kg (Not including the sensor)Waterway interface2-inch or 3-inch hose (custom made)Flow rateIn flow chamber: 250～500mL/minProtection levelIP65Water pressure≤6 bar (matching a pressure-reducing valve with the instrument)Working humidity<90%, no condensationWorking temperatureInstrument: -15℃～50℃; sensor water temperature: 0.1℃～50℃Storage temperatureInstrument: -20°C～60°C; sensor: 0.1°C～55°CFAQ – Frequently Asked QuestionsProducts are designed and manufactured in China, following international quality standards and certified processes.OEM/ODM services and private labeling are available for international clients.Products are compliant with CE, RoHS, and other international certifications.Fast and reliable delivery via major international couriers.Samples are available for evaluation before bulk orders.Standard products ship within 5–7 days after order confirmation; customized products may take longer.24/7 technical support, product guidance, and warranty service are provided.Remote technical assistance, English manuals, and prompt solutions for international clients.Orders can be placed via email or website inquiry with professional guidance.Over 30 years of manufacturing experience, advanced technology, strict quality control, and global customer service.Characteristics / Technical SpecificationsModel: W501-DOZ10.1Brand: DABECOSensor: OZ10.1 (German-made, RG brand)Measurement: Ozone (O3), pH (optional)Measuring range: 0.005–20.00 mg/L (multiple selectable ranges)Resolution: 0.001–0.01 mg/LAccuracy: ±2% or ±0.03ppm/±0.3ppm/±0.5ppm depending on rangeResponse time: T90 ≈ 15sDrift: -1%/monthpH range: 2.0–11.0Maintenance cycle: ≥90 daysConductivity: 10μS/cm–50mS/cmTemperature: 5–50°C (operation), -20–60°C (storage)Display: LCDPower: 105–235VAC, 50±1Hz / 24VDC±5%Analog output: 2 channels (load <500Ω)Digital output: RS485, MODBUS RTURelay: 3-way, 5A 250VAC/30VDC, 3A 250VAC/28VDC/120VACMaterial: Cast aluminum, PA66+30GFSize: 145×145×174mmWeight: 1.8kg (excluding sensor)Waterway: 2" or 3" hose (custom)Protection: IP65Flow: 250–500mL/minWater pressure: ≤6 barWorking humidity: <90%, no condensation
