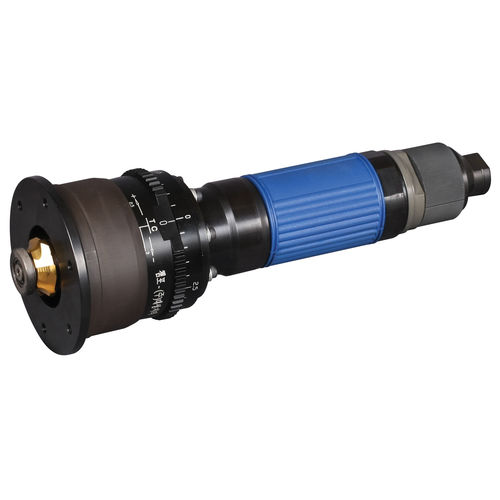

Pneumatic chamfering machine GT-50TRCportableradius
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- portable
- Applications
- radius
Description
Height Adjustment One-touch Spline Controller
-
Adjustment Increments Minimum 0.1mm step
-
Weight 1.5 kg
-
Compressed air pressure 6kg/cm2 l 0.3m3/min
-
Insert No. of Inset: 2
- C: CF100iC / R: CF100iR2 CF100iR3
Range of chamfering 0~3C / R2, R3
-
Min. Thickness 4mm(0.5C) / 4.5mm(1C) / 5.5mm(2C) / 6.5mm(3C)
- 6mm(2R) / 7mm(3R)
Guide bearing Clamp bearing guide
-
Applications Plate, curve, hole (min. Ø10.5) radius and straight chamfering
