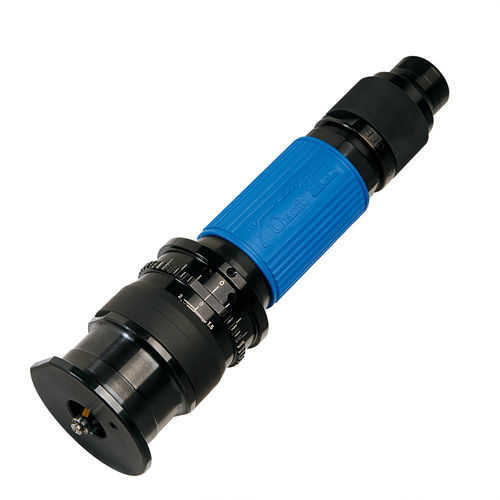

Pneumatic chamfering machine GT-38 seriesportableradius
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- portable
- Applications
- radius
- Rotational speed
25,000 rpm
(157,079.6327 rad.min-1)- Chamfer angle
45 °
Description
Physical Specs.
+ Bolt size of air injection hole : PT 1/4 inch
+ Air injection hose : 8 mm diameter
+ Air Pressure : 6 kg/cm2
+ Diameter of base plate : 54 mm
+ no load RPM : 25,000
+ Collet : 6 mm
+ Length : 201 mm
+ Weight : 1.2 kg
Chamfering range
Hole diameter: min. 7.5mm
Angled Corner: min. RI (by rotary burr, R3.5 by carbide insert)
Radius chamfering: IR, 1.5R & 2R
Thickness: min. 3mm
Quick & Easy adjustment by a patented one-touch controller
Angled corner's chamfering (from approx. 300 angle)
Chamfering & Radius Chamfering
