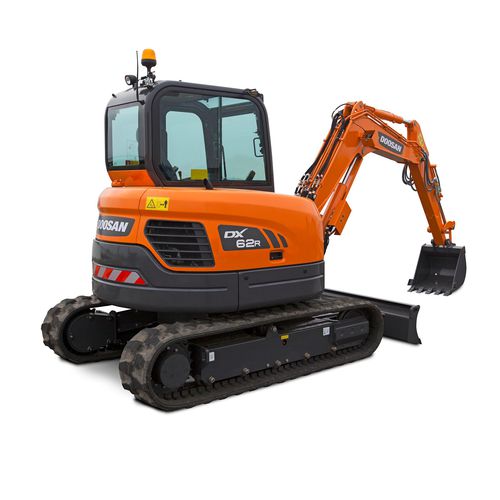

Mini-excavator DX62R-7

crawlerTier 4 - finaldiesel

Overview
The DX62R-7 is a compact crawler excavator equipped with the Develon D24 Stage V engine. It delivers high torque at low rpm with reduced fuel consumption. Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) ensure compliance with Stage V emissions requirements.

Key highlights

• Compact crawler excavator with Develon D24 Stage V engine
• High torque at low revs for improved productivity and fuel savings
• Emission control: DOC and DPF compliant with Stage V
• Reinforced upper-structure platform for increased durability
• EPPR valve for rotation and 2-way functions with proportional flow control via joystick thumbwheel
• Full open covers for easy access and maintenance

Machine summary (quick data)
Operating weight: 6216 kg
Engine power: 44.3 kW (65 hp)
Width: 1980 mm

Performance & reach
Max. reach at ground level (standard/long arm): 6175 / 6485 mm
Max. digging depth (standard/long arm): 3795 / 4095 mm
Travel speed: 2.8 - 4.7 km/h

Engine
Develon D24 (Stage V)

Technical specifications

• Operating weight: 6216 kg
• Engine power: 44.3 kW (65 hp)
• Width: 1980 mm
• Engine model: Develon D24 (Stage V)
• Emission controls: DOC and DPF (Stage V compliant)
• Max. reach at ground level (std / long arm): 6175 / 6485 mm
• Max. digging depth (std / long arm): 3795 / 4095 mm
• Travel speed: 2.8 - 4.7 km/h
• Hydraulic feature: EPPR valve for rotation and 2-way with proportional control via joystick thumbwheel
• Maintenance: Full open covers for easy access
• Structure: Reinforced upper-structure platform for increased durability
