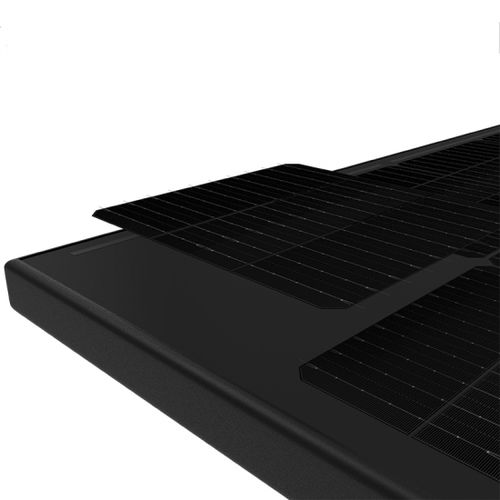

Monocrystalline silicon solar module DHM-T60X10/FS(BW)-450~465WCETUV
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- CE, TUV
- Peak power (Wp)
450 W, 455 W, 460 W, 465 W
- Open-circuit voltage
62 V, 62.2 V, 62.4 V, 62.6 V
- Short circuit current
9.2 A, 9.3 A, 9.4 A
- Max power voltage
52.4 V, 52.6 V, 52.8 V, 53 V
- Max power current
8.6 A, 8.7 A, 8.8 A
- Module efficiency
20.85 %, 21.08 %, 21.32 %, 21.55 %
- Lenght
1,903 mm
(75 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
23.5 kg
(51.81 lb)
Description
• Low current, increase power generation 1/3 design, lower current and lower loss.
• Increase power generation by 6-15%+ Panel is capable to decrease power generation loss caused by Dust, reduce the hot spot risk.
• Curved Surface 128°R Angle Reduce holding pressure by 75%+ Curved Frame with ergonomic Design, optimized Delivery and Installation Experience.
• Revolutionary Assembling Technology Using excellent frame assembling technology, Strong Adhesion, Durable in Use.
• Excellent mechanical load capacity Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa).
• Please contact our Online Service Representative to get detail information and quotation about our products!
