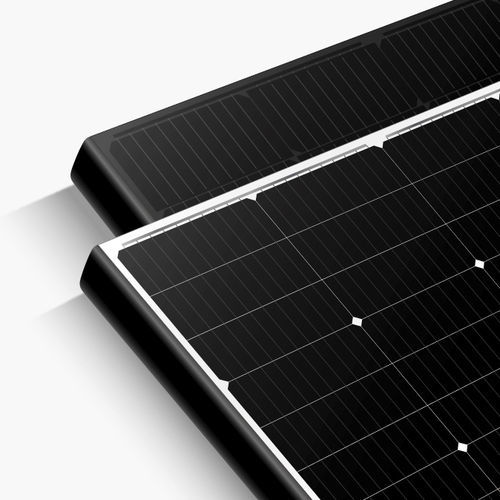

Monocrystalline silicon solar module DHM-66L9/FS(BW)-405~420WCETUVblack
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- CE, TUV
- Other characteristics
- black
- Peak power (Wp)
405 W, 410 W, 415 W, 420 W
- Open-circuit voltage
45 V, 45.2 V, 45.4 V, 45.6 V
- Short circuit current
11.3 A, 11.4 A, 11.5 A
- Max power voltage
37.4 V, 37.6 V, 37.8 V, 38 V
- Max power current
10.8 A, 10.9 A, 11 A, 11.1 A
- Module efficiency
20.28 %, 20.53 %, 20.78 %, 21.03 %
- Lenght
1,924 mm
(76 in)- Width
10 mm
(0 in)- Height
32 mm
(1 in)- Weight
22 kg
(48.5 lb)
Description
• Optimal Process Design166mm+9BB+Half-cut, higher power output
• Curved Surface 128° R Angle Reduce holding pressure by 75%+Curved frame with ergonomic design,optimized delivery and Installation experience.
• Process UpgradedLower risk of hot spot and stronger anti-PID ablity
• Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss
