Conveyor system for industrial applications

overheadfloor-mounted

Overview
The Flexible Drive System transports loaded carriers and trolleys using a friction-based drive: a motor-driven driving wheel presses against trolley sides or load bars to generate propulsion. The chainless configuration enables adaptable line layouts for branching, merging and curved runs.

Overhead Type
Overhead configuration supports flexible layouts including branching and merging. Roller drive provides stable, consistent speed. The overhead arrangement is operator-friendly thanks to low noise, low impact and oil-free construction.

• Flexible branching and merging
• Roller drive for stable, consistent speed
• Low noise and low impact operation
• Oil-free design

Floor Type
Floor configuration delivers smooth, stable conveyance to facilitate accurate operations at workstations. An optional built-in lift adjusts workpiece height to match process requirements.

• Smooth, stable conveyance for accurate line work
• Optional built-in lift to adjust workpiece height

Load Bar Turn
The system uses a load-bar turn mechanism to change pallet direction without a conventional turntable. Each conveyor pallet is divided into three articulated sections connected by load bars, enabling turning and swerving while reducing power consumption, weight and component count. Sectioned pallets also simplify truck loading and improve transport efficiency.

• Pallets divided into three sections connected by load bars
• Enables turning and swerving without a turntable
• Reduces power consumption, weight and component count
• Facilitates easier loading onto trucks and improved transport efficiency

Typical Applications

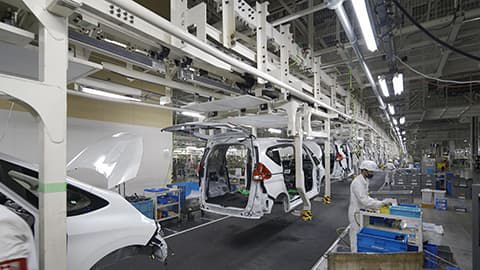

• Automotive assembly: interior to undercarriage conveyance
• Dashboard and instrument panel assembly lines
• Conveyance from exterior assembly to final vehicle assembly
• General assembly lines requiring branching/merging and smooth transfer

Technical specifications

• Drive principle: friction drive — motor-driven driving wheel presses trolley sides or load bars
• Line configuration: highly flexible (branching, merging, curved runs)
• Product types: Overhead type and Floor type
• Drive: roller drive for stable, consistent speed (Overhead)
• Operational features: low noise, low impact, oil-free
• Floor option: built-in lift for height adjustment
• Load bar turn: pallets divided into three articulated sections connected by load bars
• Design benefits: reduced power consumption, reduced weight, fewer components, improved loading and transport efficiency
